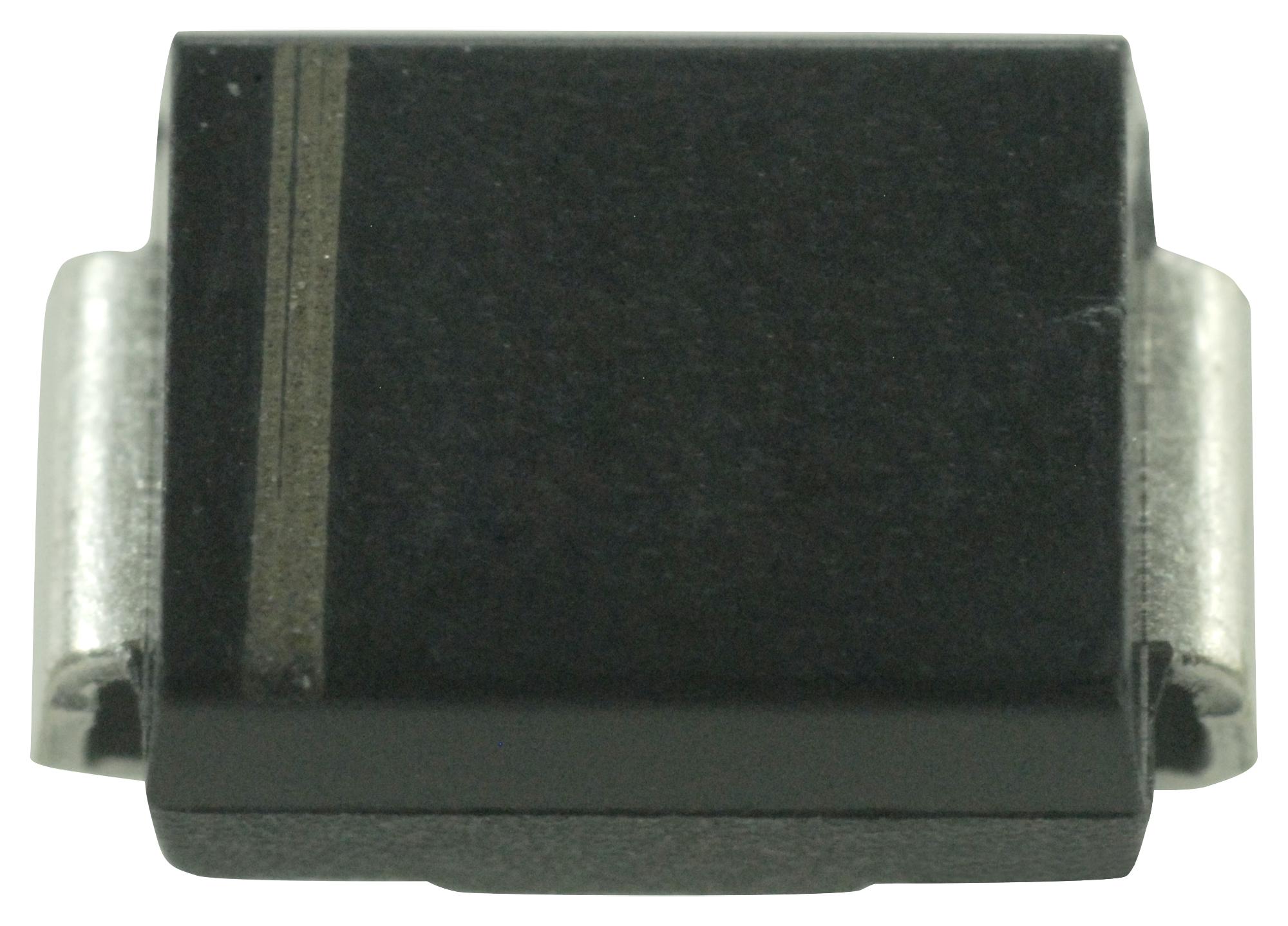

YAGEO SMDJ15ATR7 Transient Voltage Suppressor
The SMDJ15ATR7 is a surface-mounted transient voltage suppressor designed to protect electronic circuits from voltage spikes and surges. It features a low-profile package, built-in strain relief, and glass passivated junction for excellent clamping capability. With a peak pulse power of 3000W at 10/1000 microseconds waveform, it responds quickly to transient events, ensuring reliable circuit protection in AC/DC power supplies and communication lines. It complies with RoHS and halogen-free standards, suitable for compact, high-performance electronic systems.
YAGEO SMDJ15ATR7 Transient Voltage Suppressor Specifications:
- Peak Pulse Power: 3000W at 10/1000us waveform
- Maximum Junction Temperature: -65°C to +150°C
- Response Time: Fast response time
- Operating Voltage Range: 24.4V to 26.9V
- Temperature Soldering: 260°C for 10 seconds
- Mounting: Surface-mount on JEDEC DO-214AB package
- Package Dimensions: Length 6.60-7.11mm, Width 5.59-6.22mm, Height 2.20-2.80mm
- Certification: UL: E244458, RoHS compliant & halogen free
- Mechanical Data: Glass passivated junction, solder plated terminals, 16mm tape packaging
Buy the YAGEO Series SMDJ Transient Voltage Suppressor: SMDJ15ATR7
Order the YAGEO SMDJ15ATR7 transient voltage suppressor online today and secure reliable circuit protection for your electronic projects. With a 3000W peak pulse power capacity, fast response time, and compact surface-mount design, it is ideal for protecting AC/DC power supplies and low-frequency signal lines. The device features RoHS compliance, halogen-free construction, and a robust glass passivated junction. Easy to install with standard JEDEC DO-214AB package dimensions, this TVS diode guarantees durable performance in demanding environments and simplifies assembly in compact electronics.
Buy YAGEO SMDJ15ATR7 now and experience unmatched reliability and performance in circuit protection with fast response and high power handling.
