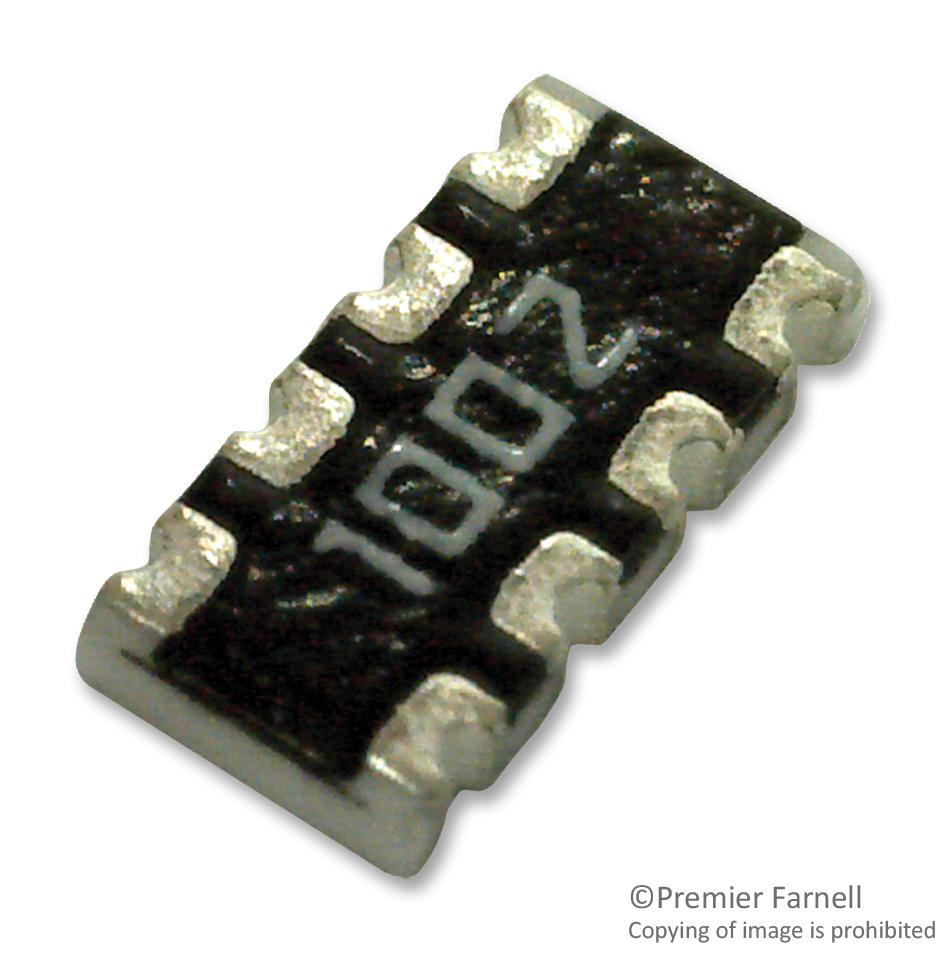

YAGEO TC164FR0747RL Chip Resistor
The TC164 chip resistor is a surface-mount component designed for high reliability and low environmental impact. Constructed on a high-grade ceramic body with thick film resistive elements, it features lead-free, RoHS-compliant materials, including electroplated matte tin terminations. Suitable for high-temperature environments from -55°C to +155°C, it boasts an power rating of 1/16 W and various resistance values with tight tolerances. Its precise laser-trimmed resistor element ensures consistent performance, making it ideal for demanding electronic applications requiring space-saving and durable components.
YAGEO TC164FR0747RL Chip Resistor Specifications:
- Construction: High-grade ceramic body with thick film resistive element
- Material: Electrode with noble metal embedded in glass
- Terminations: Lead-free, matte tin plating
- Resistance Range: Values from 0.01Ω to 976kΩ, coded in series-specific formats
- Tolerance: Typically ±1% or ±5%
- Temperature Range: -55°C to +155°C
- Power Rating: 1/16 W at 70°C for most series
- Rated Voltage: 50V to 100V depending on type
- Dimensions: Various sizes; e.g., YC122 – 3.2 x 1.6 mm, YC164 – 3.2 x 2.0 mm, etc.
- RoHS Compliance: Fully RoHS 2.0 compliant, containing no hazardous substances
- Environmental Resistance: Tested for thermal shock, moisture, and soldering heat endurance
- Mounting: Surface-mount technology, suitable for pick-and-place automated assembly
Buy the Buy YAGEO Chip Resistor Part Number TC164FR0747RL Online
Experience the reliability and precision of the YAGEO chip resistor TC164FR0747RL, designed for demanding electronic applications. Crafted with environmentally friendly RoHS-compliant materials, it features a ceramic body with a thick film resistive layer, laser-trimmed for accuracy. Suitable for high-temperature environments up to 155°C, and rated at 1/16 W power, this surface-mount component provides space-saving advantages and exceptional durability. Ideal for use in computers, communication devices, and consumer electronics, it offers excellent performance under thermal and moisture stress, making it a perfect choice for engineers and assembly lines.
Get YAGEO TC164FR0747RL today—built for high temperature resilience and long-lasting durability, ideal for space-constrained electronic assemblies.
Frequently Asked Questions
Where can I buy YAGEO TC164FR0747RL?
You can click on the BUY or RFQ button to purchase TC164FR0747RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part TC164FR0747RL?
You can download the TC164FR0747RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of TC164FR0747RL?
YAGEO
