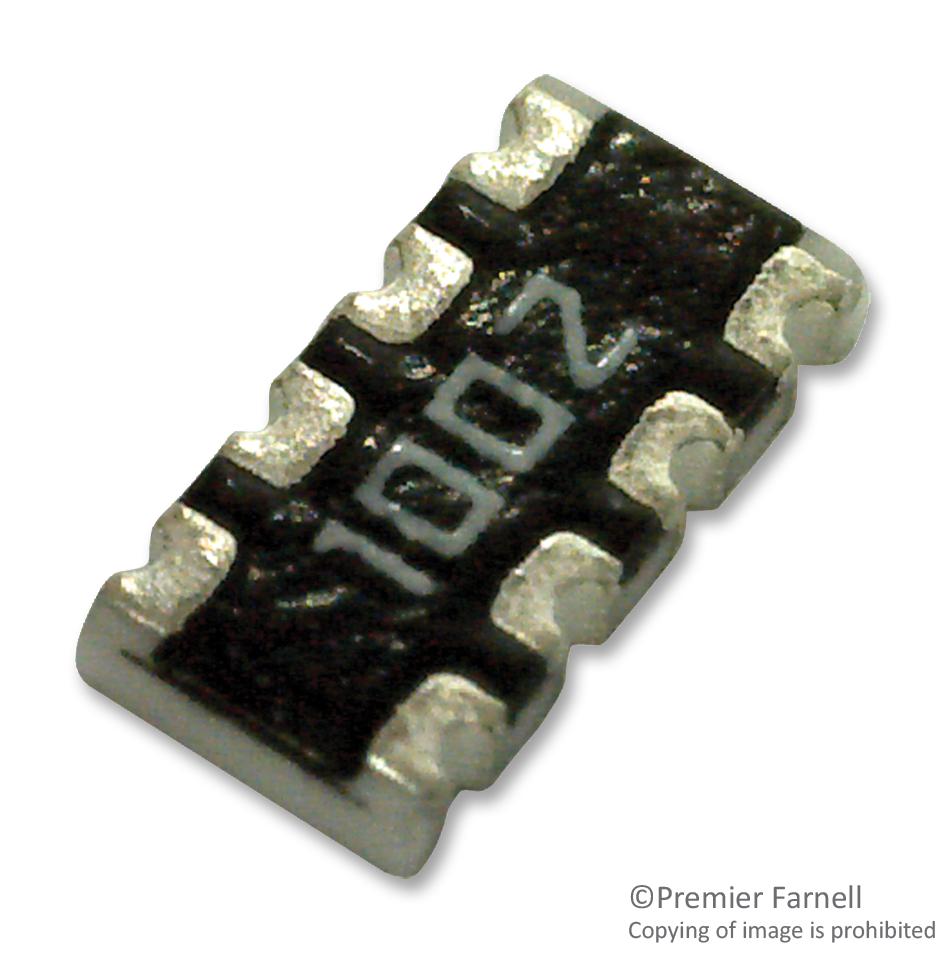

YAGEO TC164JR07100KL Surface Mount Chip Resistor
The TC164JR07100KL is a high-reliability surface-mount chip resistor with precise resistance values for electronic circuits. Designed on a ceramic body with thick film resistive elements, it features lead-free, RoHS-compliant construction for environmental safety. Its construction includes precious metals embedded in glass, laser-trimmed for accuracy, and protected by epoxy coating with matte tin external terminations. Suitable for a broad range of applications, it offers excellent thermal stability, resistance to harsh conditions, and compact footprints, making it ideal for PCB assembly in consumer electronics, telecommunications, and computer systems.
YAGEO TC164JR07100KL Surface Mount Chip Resistor Specifications:
- Power Rating: 1/16 W at 70°C
- Resistance Range: 10Ω to 1MΩ (values indicated by 3-4 digit codes, with optional decimal point R/K/M)
- Tolerance: ±1% or ±5%
- Maximum Working Voltage: 50V (for various resistance values)
- Operating Temperature Range: -55°C to +155°C depending on series
- Construction: Ceramic high-grade substrate with thick film resistive element embedded in glass
- RoHS Compliant: Yes, lead-free and environmentally safe
- Termination: Matte tin on Ni barrier
- Size Options: Series YC/TC from 102 to 358, with specific dimensions per type
- Resistance Tolerance: ±1% or ±5%, corresponding to tolerance codes
- Voltage Rating: Typical 50V, varies with resistance value
- Solderability Test: Wetting according to IPC/JEDEC standards
- Mechanical Stability: Resistance to thermal shock, moisture, and soldering heat
- Application: Suitable for SDRAM, DDRAM, mobile phones, PCs, and consumer electronics
- Package: Tape reel options - 7-inch (10,000 units), 13-inch (50,000 units) for automated assembly
Buy the Buy YAGEO Chip Resistor Part Number TC164JR07100KL Online
Order the YAGEO TC164JR07100KL surface mount chip resistor online today to ensure reliable performance and environmental compliance. Perfectly designed for PCB mounting, it offers high precision, stable resistance over temperature, and resistance to harsh conditions. Its RoHS compliant, lead-free construction aids in eco-friendly manufacturing and reduces hazardous waste. By choosing this resistor, you benefit from excellent thermal stability, high reliability, and compact size, making it ideal for modern electronics including computers, telecommunications, and consumer devices. Purchase now for quality and durability.
Get YAGEO TC164JR07100KL today—built for precision and long-lasting durability in electronic circuits and PCB assemblies.
Frequently Asked Questions
Where can I buy YAGEO TC164JR07100KL?
You can click on the BUY or RFQ button to purchase TC164JR07100KL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part TC164JR07100KL?
You can download the TC164JR07100KL datasheet or visit the YAGEO website for support.
Who is the manufacturer of TC164JR07100KL?
YAGEO
