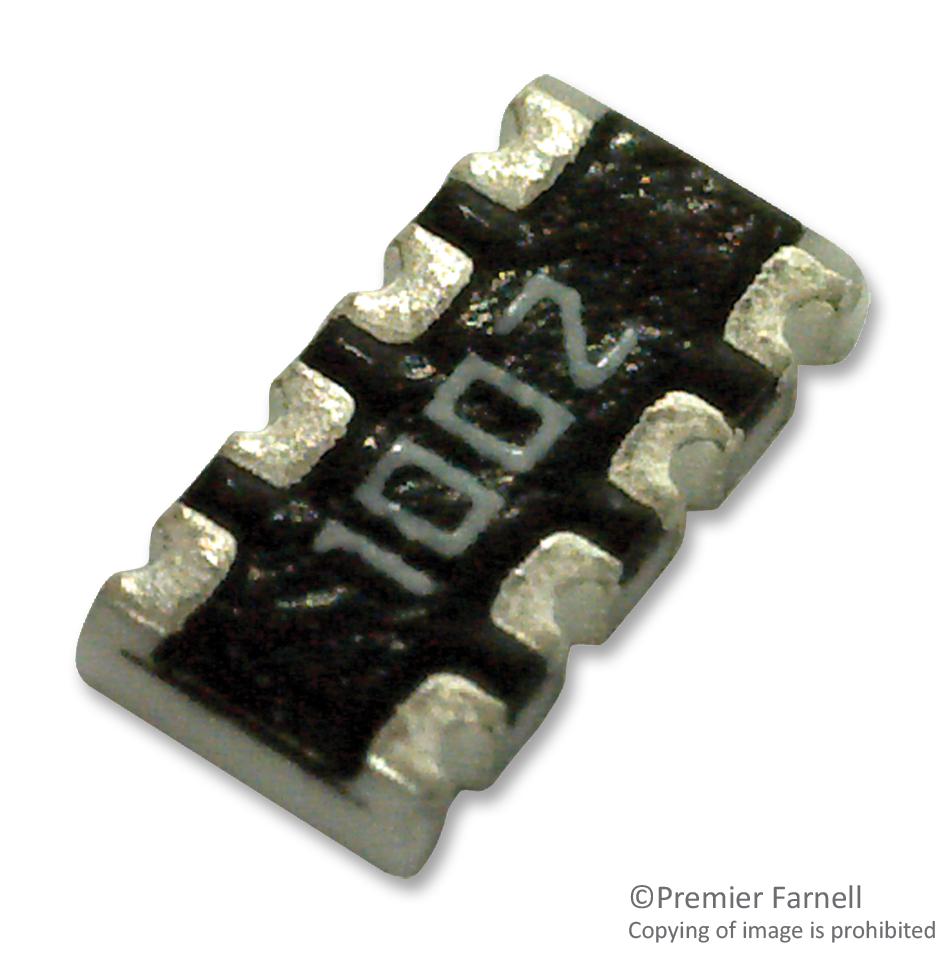

YAGEO TC164JR07560RL Surface Mount Chip Resistor
The TC164 series chip resistor offers high reliability and environmental compliance, featuring surface-mount design with RoHS compliance, high-temperature tolerance, and various resistance values. Constructed on a ceramic body with metal electrodes and thick film resistive elements, these resistors are laser trimmed for accuracy and protected with epoxy coating. Suitable for high-density PCB applications, they provide low power dissipation, excellent stability, and meet rigorous testing standards including solderability, thermal shock, and moisture resistance, making them ideal for computer, communications, and consumer electronics.
YAGEO TC164JR07560RL Surface Mount Chip Resistor Specifications:
- Construction: High-grade ceramic body with noble metal embedded resistive element covered by glass
- Power Rating: 1/16W for most series, 1/8W for specific models
- Temperature Range: -55°C to +125°C or +155°C depending on series
- Resistance Range: 0.01Ω to 976kΩ with tolerance levels ±1%, ±5%
- Rated Voltage: 25V to 50V depending on resistance value
- Minimum Resistance Tolerance: ±1% or ±5%
- RoHS compliant: Yes, with lead-free electroplating and glass electrode materials
- Resistor Element Material: Noble metal and glass, laser trimmed for accuracy
- Testing Standards: Solderability, Moisture Resistance, Thermal Shock, Endurance
- Dimensions: Vary by series, typical H ~ 0.15 to 0.9 mm, L ~ 0.5 to 6.4 mm
- Packaging: Tape and reeled; 7-inch or 13-inch reels with quantities up to 50,000 units
- Applications: SDRAM, DDRAM, laptop and desktop computers, telecom equipment, consumer electronics
Buy the YAGEO Series Surface Mount Chip Resistor: TC164JR07560RL
Order the YAGEO TC164 series surface-mount chip resistor online today for reliable performance in demanding electronic environments. Designed for high-density PCB applications, these resistors provide precise resistance values, low power dissipation, and meet strict RoHS standards. Featuring robust construction with ceramic bodies, noble metal resistive elements, and a protective epoxy coating, they ensure excellent stability, environmental resistance, and compliance with rigorous testing conditions. Ideal for computer, telecom, and consumer electronics, available now for quick delivery.
Get YAGEO TC164JR07560RL today—built for precision and long-lasting durability in high-reliability electronic applications.
Frequently Asked Questions
Where can I buy YAGEO TC164JR07560RL?
You can click on the BUY or RFQ button to purchase TC164JR07560RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part TC164JR07560RL?
You can download the TC164JR07560RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of TC164JR07560RL?
YAGEO
