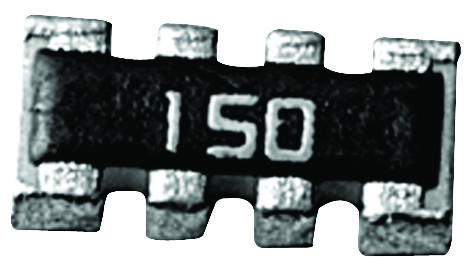

YAGEO YC124JR07150RL Chip Resistor Array
The YC124JR07150RL is a high-quality surface-mount chip resistor array designed for compact electronic applications. Constructed on a high-grade ceramic body, it features thick film resistor elements with lead-free Terminations, supporting RoHS compliance. Suitable for SDRAM, DDRAM, and various computer and consumer electronics, it offers low contact resistance, excellent thermal stability, and high reliability. The resistor is laser trimmed for accurate resistance values and covered with an epoxy coat for environmental protection. Its versatile construction makes it ideal for space-saving PCB designs with efficient manufacturing processes.
YAGEO YC124JR07150RL Chip Resistor Array Specifications:
- Construction: Ceramic substrate with noble metal embedded in glass
- Resistor Type: Thick film, laser trimmed for accuracy
- Material: Overcoated with epoxy, matte tin external terminations
- Operating Temperature Range: -55°C to +125°C
- Power Rating: 1/16 W at 70°C
- Rated Voltage: 50V
- Resistance Range: 100Ω to 150KΩ
- Tolerance: ±1%
- Temperature Coefficient: Not specified
- Solderability: JSTD-002 compliant, well-tinned surface
- Resistance to Humidity: Maintains <100mΩ after 1000 hours at 85°C/85% RH
- Shock and Vibration: Meets MIL-STD-202 standards
- Compliance: RoHS, Halogen Free Epoxy
- Dimensions (approximate): H: 0.30 mm, B: 0.50 mm, L: 1.27 mm
- Packaging: Tape reel, 10,000 units
- Application: Digital circuits, memory modules, portable electronics
Buy the Buy YAGEO YC124JR07150RL Chip Resistor Array Part Number YC124JR07150RL Online
Secure your YAGEO YC124JR07150RL chip resistor array online today! Designed for precision and reliability, this surface-mount component offers RoHS compliance, low contact resistance, and environmental durability. Perfect for SDRAM, DDRAM, and compact electronic devices, it guarantees space-saving installation and high thermal stability. With a power rating of 1/16 W and resistance range from 100Ω to 150KΩ, this resistor array is ideal for professional use in digital and memory applications. Get it now and ensure your project’s success.
Order your YAGEO SeriesYC124JR07150RL high-reliability chip resistor array today and enhance your electronic project with precision and durability.
Frequently Asked Questions
Where can I buy YAGEO YC124JR07150RL?
You can click on the BUY or RFQ button to purchase YC124JR07150RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part YC124JR07150RL?
You can download the YC124JR07150RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of YC124JR07150RL?
YAGEO
