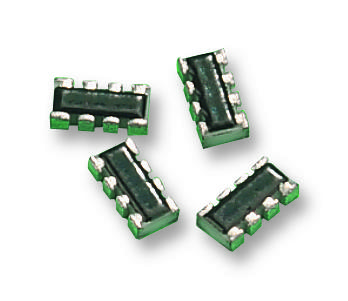

YAGEO YC124JR0722KL Chip Resistor Array
The chip resistor surface mount series features convex and flat (YC) and concave (TC) types made with lead-free thick film process. Designed for high reliability, these RoHS-compliant resistors are optimized for SDRAM, DDRAM, and computer applications, including laptops and desktops. They offer efficient pick & place, low assembly costs, and PCB space savings. Constructed on high-grade ceramic with noble metal electrodes, laser trimming ensures precise resistance, while their protective epoxy coating provides environmental protection and durability.
YAGEO YC124JR0722KL Chip Resistor Array Specifications:
- Series: YC/TC series chip resistor arrays
- Configurations: convex (YC) and concave (TC)
- Power Rating: YC102/104=1/32 W, YC122/124/162/164/248/358=1/16 W, YC324=1/8 W
- Operating Temperature Range: -55°C to +125°C (YC102/104/122/162), -55°C to +155°C (others)
- Resistance Range: 0.01Ω to 97.6kΩ with 1%, ±5% tolerance depending on part
- Resistance coding: 3-4 digit marking, e.g., 240KQ for 240,000Ω
- Construction: high-grade ceramic substrate, noble metal electrodes, laser trimmed resistive element
- Terminations: matte tin on Ni barrier, epoxy coated for environmental protection
- Tolerance: ±1% or ±5%, depending on model
- RoHS compliance: Yes, lead-free and environmentally friendly
- Dimensions: various based on series, detailed in datasheet
- Solderability: Meets IPC/JEDEC standards, tested with lead-free solder
- Features: RoHS compliant, high production reliability, PCB space efficient, low environmental hazards
Buy the YAGEO Series YC Chip Resistor Arrays: YC124JR0722KL
Purchase YAGEO YC124JR0722KL chip resistor array online today. These highly reliable, RoHS-compliant surface mount resistors are ideal for SDRAM, DDRAM, telecom, and computer applications. Featuring lead-free thick film technology, precise laser trimming, and protective epoxy coating, they ensure environmental safety and durability. Their space-saving design and efficient pick & place capability make assembly easier and cost-effective. Order now to enhance your electronic device’s performance and reliability with trusted, high-quality components delivered straight to your doorstep.
Get YAGEO YC124JR0722KL today—built for precision and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy YAGEO YC124JR0722KL?
You can click on the BUY or RFQ button to purchase YC124JR0722KL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part YC124JR0722KL?
You can download the YC124JR0722KL datasheet or visit the YAGEO website for support.
Who is the manufacturer of YC124JR0722KL?
YAGEO
