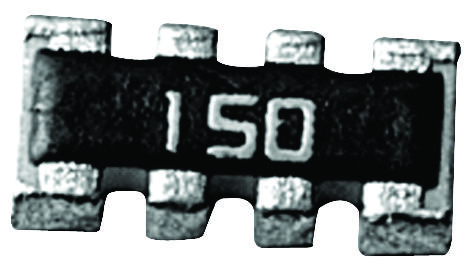

YAGEO YC164JR071KL Chip Resistor Arrays
The YC 164 series from Yageo consists of convex thick film chip resistor arrays. These integrated discrete resistors feature a standard 0603 (4 × 0603) package size and are available in resistance values ranging from 1 ohm to 1 megaohm, covering E24 and E96 decade range. They are designed to save PCB space and provide high reliability, making them ideal for pick-and-place manufacturing. Key features include a maximum working voltage of 50V, power rating of 1/16W at 70°C, temperature coefficient of ±200 ppm/°C, operating temperature from -55°C to +155°C, with tolerance options of ±1% and ±5%. Jumpers are also available in the series.
YAGEO YC164JR071KL Chip Resistor Arrays Specifications:
- Package Size: 0603 (4 × 0603)
- Resistance Range: 1Ω to 1MΩ
- Tolerance: ±1%, ±5%
- Maximum Working Voltage: 50V
- Power Rating: 1/16W at 70°C
- Temperature Coefficient: ±200 ppm/°C or ±250 ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Series: YC164
- Features: Convex thick film, high reliability, lead-free, RoHS compliant
- Jumpers Available
- Construction: Ceramic body with noble metal electrodes and protective overcoat.
Buy the YAGEO Series YC164 Chip Resistor Arrays: YC164JR071KL
Order YAGEO YC164JR071KL chip resistor arrays online today. These high-reliability, space-saving resistors feature a 0603 package size, resistance values from 1 ohm to 1 megaohm, and tolerance options of ±1% and ±5%. Designed for pick-and-place automation, they operate up to 50V with a power rating of 1/16W at 70°C. Ideal for PCB-intensive electronic designs, offering excellent thermal stability and long-term durability, perfect for OEM manufacturing and repair needs. Buy now for quality and efficiency.
Get YAGEO YC164JR071KL today—built for precision and long-lasting durability in high-reliability applications.
Frequently Asked Questions
Where can I buy YAGEO YC164JR071KL?
You can click on the BUY or RFQ button to purchase YC164JR071KL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part YC164JR071KL?
You can download the YC164JR071KL datasheet or visit the YAGEO website for support.
Who is the manufacturer of YC164JR071KL?
YAGEO
