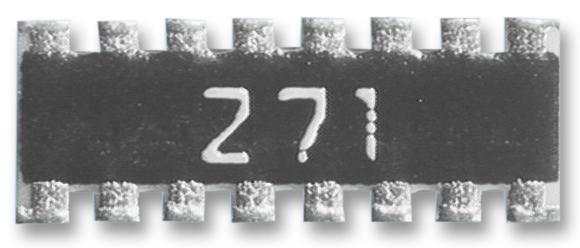

YAGEO YC248JR07680RL Chip Resistor
The YC248 chip resistor is a surface mount component designed for high reliability in electronic circuits. Made with thick film resistive elements on a ceramic body, it features lead-free, RoHS-compliant electroconductive glass and protective coatings for environmental resistance. Suitable for applications in SDRAM, DDRAM, laptops, desktops, and mobile devices, it offers precise resistance values, low power ratings of 1/16 W, and operating temperatures from -55°C to +155°C. Its compact size and epoxy coating ensure durability, making it ideal for space-saving and environmentally friendly electronic designs.
YAGEO YC248JR07680RL Chip Resistor Specifications:
- Size options: YC series 102/104/122/124/162/164/248/324/158/358, TC series 122/124/164
- Power Ratings: YC102/104 = 1/32 W, others = 1/16 W, YC324 = 1/8 W
- Operating Temperature Range: -55°C to +155°C
- Resistance Range: 0.01 to 97.6 KΩ, resistance values specified with 2-5 digits indicating significant figures and zeros
- Resistance Tolerance: ±1%, ±5% (for Jumper)
- RoHS compliant, lead-free with Pb-glass electrodes
- Voltage Ratings: 30V to 50V depending on series
- Construction: High-grade ceramic body with metal electrodes and thick film resistive element
- Environmental Resistance: Coated with protective epoxy, laser trimmed for accuracy
- Marking: No marking for YC122/124, latest series have alphanumeric markings
- Packaging: Paper taping reels (7" or 13") with quantities from 5,000 to 50,000 units, embossed tape available
- Soldering/Solderability: Meets IPC/JEDEC standards, dipped in lead-free solder at 245°C
- Mechanical: Able to withstand thermal shock, humidity cycles, and bending tests without damage
- Dimensions: Refer to datasheet outline figures with specific sizes for series
Buy the YAGEO Series YC248 Chip Resistor: 1/16W 97.6KΩ RoHS Lead-Free
Get the YAGEO Series YC248 chip resistor now and experience high reliability in your electronic applications. The RoHS compliant, lead-free component is designed for use in SDRAM, DDRAM, mobile devices, and more. Its compact size and wide temperature range from -55°C to +155°C ensure durability and performance. Easy to mount, with low power rating of 1/16 W, it offers precise resistance values, excellent environmental resistance, and adherence to safety standards. Perfect for space-saving, environmentally conscious projects requiring dependable electronic components.
Order your YAGEO Series YC248 chip resistor today and enhance your electronic projects with premium reliability and environmentally friendly design.
Frequently Asked Questions
Where can I buy YAGEO YC248JR07680RL?
You can click on the BUY or RFQ button to purchase YC248JR07680RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part YC248JR07680RL?
You can download the YC248JR07680RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of YC248JR07680RL?
YAGEO
