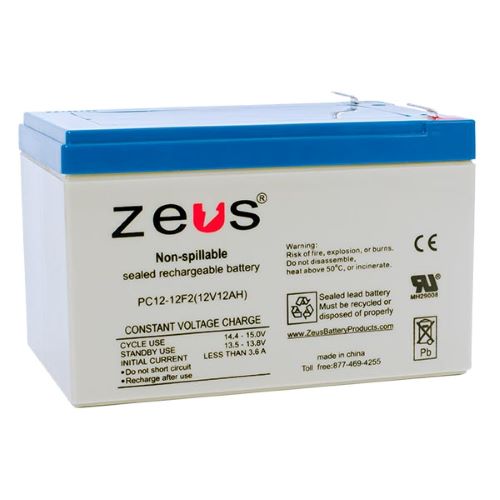

ZEUS PC1212F2 12V 12AH SLA Battery
The ZEUS PC12-12F2 is a high-performance, maintenance-free sealed lead-acid (SLA) battery offering exceptional reliability and long-lasting power. Its advanced AGM and grid alloy technology ensures stable quality and excellent re-charging capabilities. Ideal for alarm systems, security systems, telecommunications equipment, UPS systems, and emergency lighting, this battery provides dependable backup power. The robust ABS UL94-HB (optional UL94-V0) container ensures durability and safety. It meets DOT, IATA, and FAA transportation standards, making it suitable for a wide range of applications.
ZEUS PC1212F2 12V 12AH SLA Battery Specifications:
- Capacity (25°C) 20HR: 12.00AH
- Capacity (25°C) 10HR: 11.55AH
- Capacity (25°C) 5HR: 10.80AH
- Capacity (25°C) 1HR: 7.23AH
- Operating Temperature Range (Charge): -15°C to +50°C
- Operating Temperature Range (Discharge): -20°C to +60°C
- Storage Temperature Range: -20°C to +60°C
- Approximate Weight: 3.50kg
- Internal Resistance (Fully Charged): ≤ 16mΩ
- Self Discharge: 3% per month at (25°C)
- Capacity Affected by Temperature: {'40°C': '102%', '25°C': '100%', '0°C': '85%', '-15°C': '65%'}
- Charge Voltage (Cycle Use): 14.4-14.7V (-30mV/°C)
- Max Charge Current: 3.6A
- Float Voltage: 13.5-13.8V (-20mV/°C)
- Dimensions Length: 151mm (5.94 in.)
- Dimensions Width: 98mm (3.86 in.)
- Dimensions Height: 94mm (3.70 in.)
- Dimensions Total Height: 99mm (3.90 in.)
- Container and Cover Material: ABS UL94-HB (optional UL94-V0)
- Transportation Standards: D.O.T., I.A.T.A. & F.A.A.
- Cycle Use: Up to 260 cycles at 100% DoD
- Cycle Use (50% DoD): Up to 500 Cycles
- Floating and Standby Use: Up to 5 years
- Terminal Type: F2 0.250” x 0.032” quick disconnect tabs
