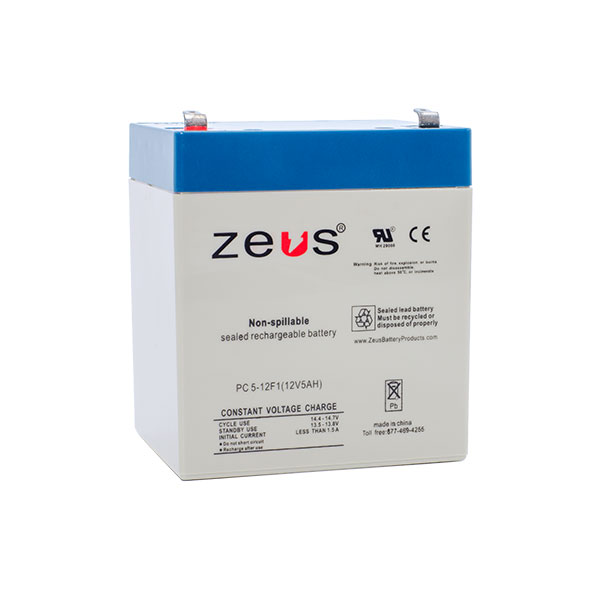

ZEUS PC512F1 12V 5.0AH SLA Battery
The ZEUS PC5-12F1 is a high-performance, sealed lead acid battery engineered for a wide range of applications requiring reliable backup power. Its advanced AGM (Absorbent Glass Mat) technology ensures maintenance-free operation and minimizes self-discharge, making it suitable for extended standby use. The robust construction and high-quality materials contribute to its exceptional reliability and re-charging capabilities. Common applications include uninterruptible power supplies (UPS), alarm and security systems, communication power supplies, and emergency lighting. The battery's compact size and versatile terminal options (F1 and F2) further enhance its adaptability to diverse system designs. Proper charging voltage compensation is crucial, especially in extreme temperatures, to maximize battery life and performance.
ZEUS PC512F1 12V 5.0AH SLA Battery Specifications:
- Capacity (25°C) 20HR: 5.00AH
- Capacity (25°C) 10HR: 4.70AH
- Capacity (25°C) 5HR: 4.25AH
- Capacity (25°C) 1HR: 2.90AH
- Operating Temperature Range (Charge): -15°C to +50°C
- Operating Temperature Range (Discharge): -20°C to +60°C
- Storage Temperature Range: -20°C to +60°C
- Approximate Weight: 1.60kg
- Internal Resistance (Fully Charged): ≤ 40mΩ
- Self Discharge: 2% per month at (25°C)
- Capacity Affected by Temperature: {'40°C': '102%', '25°C': '100%', '0°C': '85%', '-15°C': '65%'}
- Charge Voltage (Cycle Use): 14.4-14.7V (-30mV/°C)
- Max Charge Current: 1.5A
- Float Voltage: 13.5-13.8V (-20mV/°C)
- Dimensions (Length): 90mm (3.54 in.)
- Dimensions (Width): 70mm (2.76 in.)
- Dimensions (Height): 101mm (3.98 in.)
- Total Height: 105mm (4.13 in.)
- Terminal Type F1: 0.187” x 0.032” quick disconnect tabs
- Terminal Type F2: 0.250” x 0.032” quick disconnect tabs
