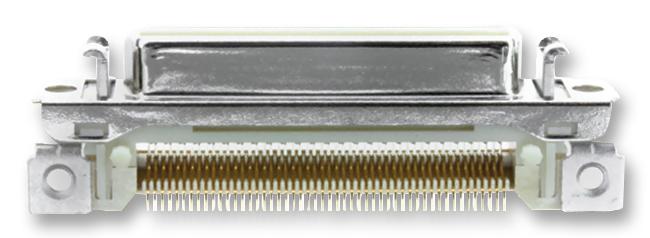

3M 102501210PE Surface Mount Connector
The 3M Mini D Ribbon connectors are shielded surface-mount right angle receptacles designed for reliable high-density connections in electronic assemblies, featuring a Wiper-on-wiper contact system for consistent mating cycles and ultra-low signal skew for high data rate transmission. These connectors support 14, 20, 26, 40, and 50 contacts, with durable gold flash plating over nickel contacts, a glass-reinforced polyester insulator, and a temperature rating from -55°C to +105°C, complying with UL 94V-0 safety standards. Ideal for digital LCD interfaces and interconnect solutions, they ensure stable, high-performance electrical connections.
3M 102501210PE Surface Mount Connector Specifications:
- Insulation Material: Glass Reinforced Polyester
- Flammability: UL 94V-0
- Color: Beige
- Contact Material: Copper Alloy
- Plating: Gold Flash over Nickel
- Underplating: Nickel
- Wiping Area: Gold Plated
- Solder Tail Plating: Tin
- Shroud and Latch Hook Material: Steel with Nickel Plating
- Grounding Flange Screw Lock Material: Copper Alloy with Tin Plating
- Current Rating: 1 A
- Insulation Resistance: > 5 x 10^8Ω at 500 V
- Withstanding Voltage: 500 V for 1 Minute
- Temperature Rating: -55°C to +105°C
- Process Rating: 260°C per J-STD-020C
Buy the 3M 102501210PE – Reliable Shielded Connectors for Industrial Applications
Order the 3M Mini D Ribbon Surface Mount Connector online today to enjoy reliable high-density connections with superior signal integrity. Designed with a shielded right angle receptacle, these connectors support high data rate transmission for complex electronic systems. Featuring durable gold flash plating over copper alloy contacts, UL 94V-0 insulator, and broad temperature tolerance, they ensure stable operation in industrial, digital, and communication applications. Easy to install and compatible with numerous interface designs, providing excellent value and performance for your manufacturing and repair needs.
Get 3M 102501210PE connectors today—built for high-speed data transfer and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy 3M 102501210PE?
You can click on the BUY or RFQ button to purchase 102501210PE from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 102501210PE?
You can download the 102501210PE datasheet or visit the 3M website for support.
Who is the manufacturer of 102501210PE?
3M
