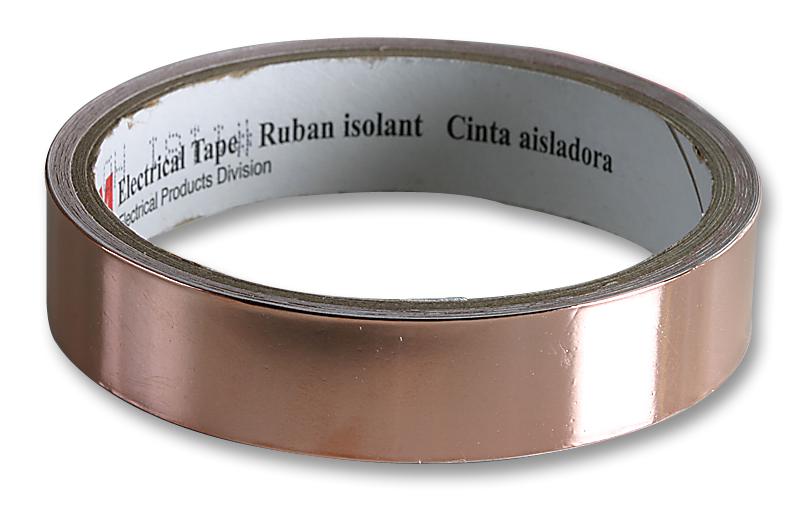

3M 1181 Copper Shielding Tape
3M Copper Foil Tape 1181 features a 1-ounce rolled copper foil backing with an electrically conductive acrylic adhesive, ideal for EMI/RFI shielding, static charge draining, and cable wrapping. Its high shielding effectiveness exceeds 85dB across 1MHz to 2 GHz, making it highly effective in electronic applications. The tape offers good electrical resistance, flame retardancy, strong adhesion, and flexibility over a temperature range of -40°C to 130°C. Supplied on a removable liner, it is suitable for shielded room seaming and surface contact on non-solderable materials, complying with RoHS standards for environmentally conscious use.
3M 1181 Copper Shielding Tape Specifications:
- Color: Copper
- Adhesive: Acrylic Conductive
- Backing Thickness: 1.4 mil (0.04mm)
- Total Thickness: 2.6 mils (0.066mm)
- Electrical Resistance: 0.005 Ohms
- Flame Retardancy: Pass
- Breaking Strength: 25 Ibs/in (44N/10mm)
- Elongation at Break: 5%
- Adhesion Strength: 35 oz/in (3.8N/10mm)
- Temperature Range: -40°C to 130°C
- Shielding Effectiveness: >85 dB, 1MHz to 2 GHz
- Shelf Life: 5 years when stored properly
Buy the 3M 1181 U–Reliable Shielding Tape for Electronic Applications
Purchase 3M Copper Foil Tape 1181 online today to benefit from its excellent EMI/RFI shielding, high durability, and ease of application. Ideal for static charge draining, shielding shielded rooms, cable wrapping, and protecting non-solderable surfaces. Its strong adhesion, flame retardant characteristics, and broad temperature range (-40°C to 130°C) ensure reliable performance in demanding electronic environments. With a shielding effectiveness exceeding 85dB from 1MHz to 2 GHz, this tape is a versatile, environmentally compliant choice for professional electronic assembly and shielding needs. Order now for fast delivery and seamless application.
Buy 3M Copper Foil Tape 1181 now and experience unmatched EMI/RFI shielding performance and reliability for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy 3M 1181?
You can click on the BUY or RFQ button to purchase 1181 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 1181?
You can download the 1181 datasheet or visit the 3M website for support.
Who is the manufacturer of 1181?
3M
