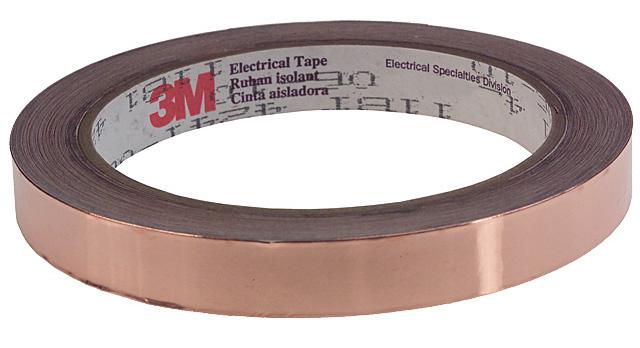

3M 118112MM Copper Shielding Tape
3M Copper Foil Tape 1181 features a 1-ounce copper foil backing with a conductive acrylic adhesive, ideal for EMI/RFI shielding and static charge draining. It meets flame retardant standards and RoHS compliance, offering excellent solder ability and shielding effectiveness over 85dB from 1MHz to 2 GHz. Suitable for electronic applications like cable wrapping, surface contact, and seaming shielded rooms, this tape ensures durability with a backing thickness of 1.4 mil, total thickness of 2.6 mil, and temperature operation from -40°C to 130°C. Packaged for long-term storage with a 5-year shelf life when humidity-controlled.
3M 118112MM Copper Shielding Tape Specifications:
- Color: Copper
- Adhesive: Acrylic Conductive
- Backing Thickness: 1.4 mil (0.04mm)
- Total Thickness: 2.6 mils (0.066mm)
- Electrical Resistance: 0.005 O/a
- Flame Retardancy: Pass
- Breaking Strength: 25 Ibs/in (44N/10mm)
- Elongation at Break: 5%
- Adhesion Strength: 35 oz/in (3.8N/10mm)
- Temperature Range: -40°C to 130°C
- Shielding Effectiveness: >85 dB, 1MHz to 2 GHz
- Shelf Life & Storage: 5 years in humidity-controlled environment
- Agency Approvals: UL 510 flame retardant, RoHS compliant
Buy the 3M Copper Foil Tape 1181 – Reliable EMI/RFI Shielding for Industrial Applications
Purchase 3M Copper Foil Tape 1181 online for reliable electromagnetic interference and radio frequency interference shielding. This conductive tape combines a copper foil backing with a pressure-sensitive, conductive acrylic adhesive, ensuring excellent solder ability and electrical performance. Its flame retardant and RoHS compliant design makes it suitable for electronics manufacturing, static charge draining, cable wrapping, and seaming shielded rooms. With >85dB shielding effectiveness from 1MHz to 2 GHz and a long shelf life of five years, it offers durability, consistency, and ease of application for critical industrial and electronics projects.
Get 3M Copper Foil Tape 1181 today—built for effective EMI/RFI shielding, static charge draining, and durable electronic surface contact solutions.
Frequently Asked Questions
Where can I buy 3M 118112MM?
You can click on the BUY or RFQ button to purchase 118112MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 118112MM?
You can download the 118112MM datasheet or visit the 3M website for support.
Who is the manufacturer of 118112MM?
3M
