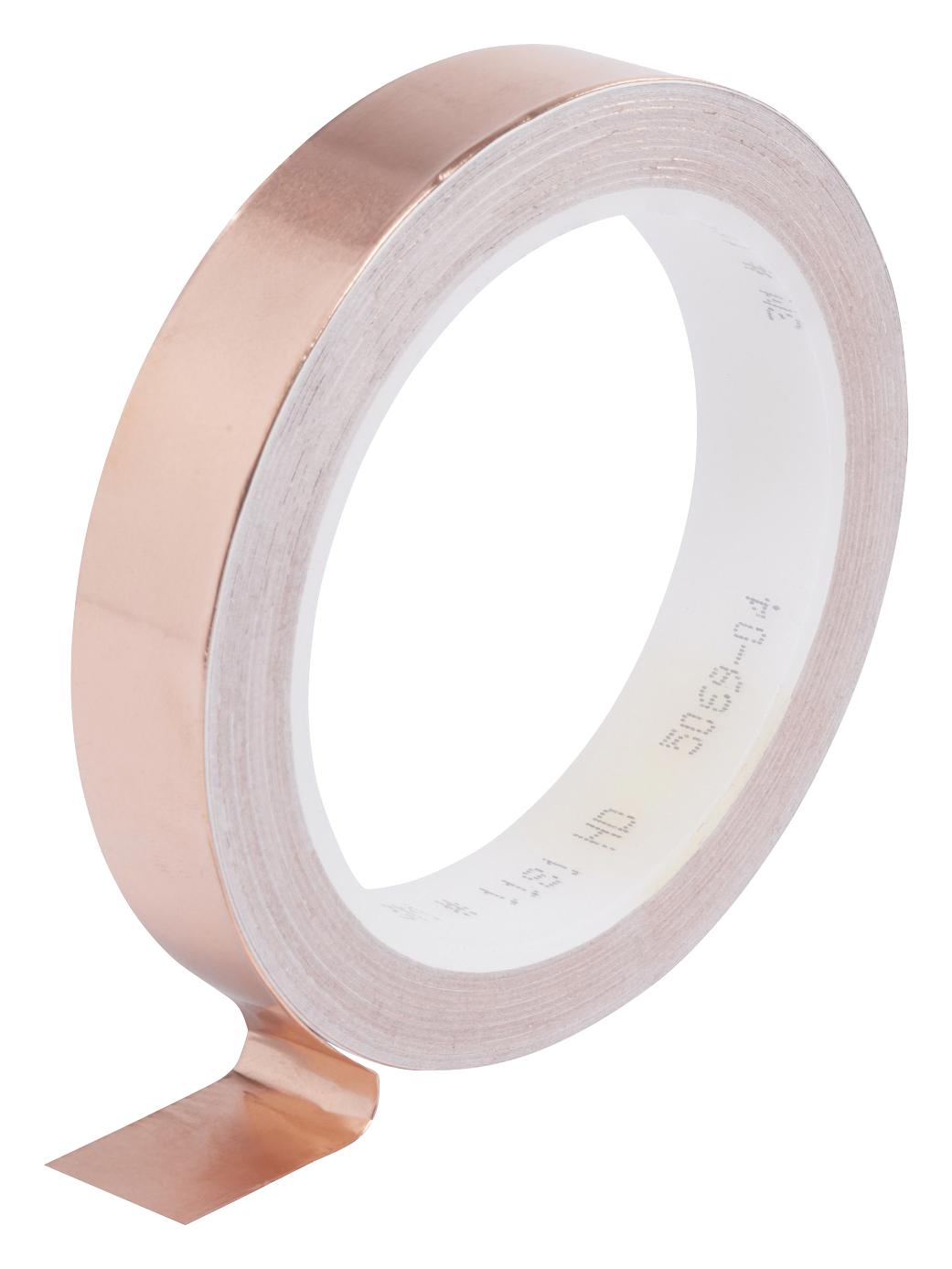

3M 118150MM Copper Shielding Tape
3M 1181 Tape is a copper foil shielding tape featuring a 1-ounce deadsoft copper backing and a conductive acrylic adhesive. Designed for electrical grounding and EMI shielding, the tape offers excellent electrical conductivity from the substrate through the adhesive to the foil backing. It is solderable, resistant to oxidation and discoloration, and supplied on a removable liner for easy handling and diecutting. Suitable for shielded rooms, electronic equipment, and components, it provides shielding effectiveness typically between 60dB and 80dB from 30 MHz to 1 GHz, ensuring reliable electromagnetic interference mitigation.
3M 118150MM Copper Shielding Tape Specifications:
- Backing thickness: 1.4 mil (0.04mm)
- Total thickness (backing plus adhesive): 2.6 mil (0.066mm)
- Breaking strength: 25 Ib/in (44 N/10mm)
- Adhesion to steel: 35 oz/in (3.8 N/10mm)
- Electrical resistance through adhesive: 0.005 ohm
- Flame retardancy: Pass
- Width range: 1/4" to 23"
- Standard length: 18 yards, longer lengths available
- Conductor material: Copper foil
- Shielding effectiveness: 60dB to 80dB (30 MHz to 1 GHz)
- Solderable and corrosion resistant
Buy the 3M Series 1181 Copper Shielding Tape: 118150MM
Order 3M 118150MM copper shielding tape online now for high-quality EMI shielding and grounding solutions. This tape features a deadsoft copper foil backing with a conductive acrylic adhesive, ensuring excellent electrical conductivity and corrosion resistance. Ideal for shielding rooms, electronic equipment, and components, it provides effective EMI attenuation of 60-80dB from 30 MHz to 1 GHz. Its solderable copper foil resists oxidation and discoloration, making it perfect for durable, reliable applications requiring consistent electromagnetic interference mitigation and ease of installation.
Get 3M 118150MM copper shielding tape today—built for reliable EMI shielding and electrical grounding in electronic devices and enclosures.
Frequently Asked Questions
Where can I buy 3M 118150MM?
You can click on the BUY or RFQ button to purchase 118150MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 118150MM?
You can download the 118150MM datasheet or visit the 3M website for support.
Who is the manufacturer of 118150MM?
3M
