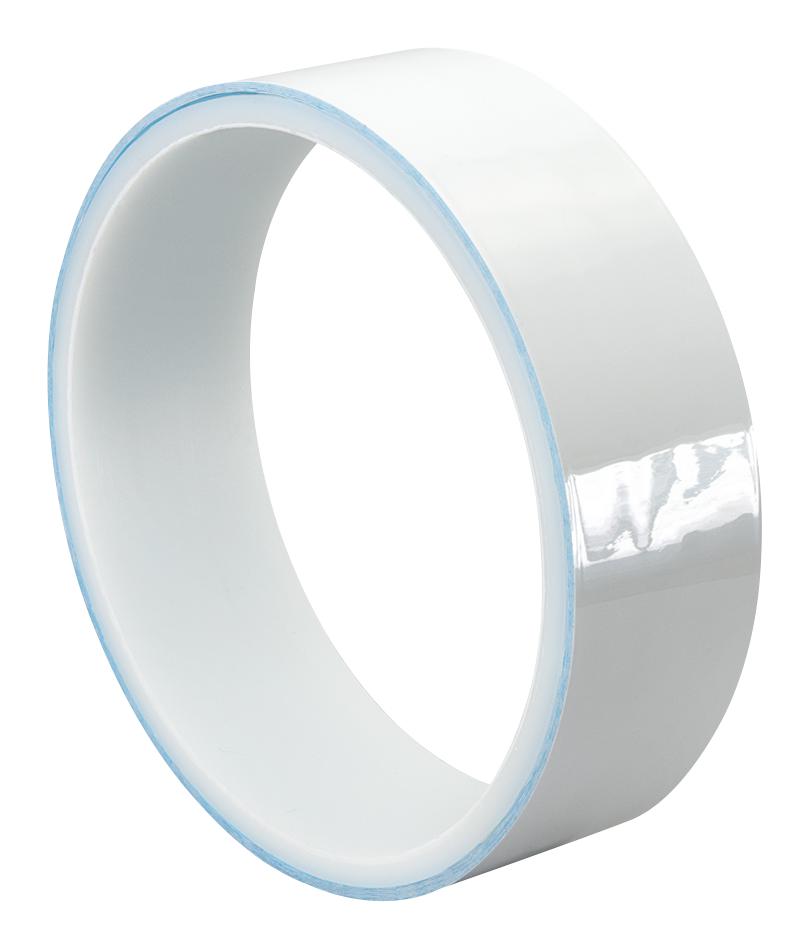

3M 1258810 Thermally Conductive Adhesive Transfer Tape
3M Thermally Conductive Adhesive Transfer Tapes (8805, 8810, 8815, and 8820 series) are engineered to facilitate efficient heat transfer between components and heat sinks or cooling devices. These tapes combine adhesive properties with thermal conductivity, offering a reliable solution for managing heat in electronic devices. They feature high mechanical strength, excellent surface wet-out for rough surfaces, and good shock performance. The halogen-free composition and suitability for thin bonding applications make them versatile for various industrial applications, including electronics assembly and thermal management.
3M 1258810 Thermally Conductive Adhesive Transfer Tape Specifications:
- Color: White
- Tape Type: Filled Acrylic Polymer
- Tape Thickness: 0.125 mm (5 mils)
- Filler Type: Ceramic
- Liner Type: Dual liner using silicone-treated polyester
- Liner Thickness: 37.5-50 µm (1.5~2 mils)
- Thermal Impedance (°C cm2/W): 3.2 (0.5)
- Thermal Conductivity (W/m-K): 0.60
- Specific Gravity: 1.07 g/cc
- Surface Resistivity (Ω-cm): 1.6 x 10^11
- Volume Resistivity (Ω-cm): 5.2 x 10^11
- Dielectric Strength (kV/mm): 26 (688)
- Dielectric Constant (8815): 93.5
- 90 Degree Peel Test (grams/25.4 mm width): 990 (35)
- Static Shear Test (1000g @ Room Temp): PASS
- Static Shear Test (500g @ 70°C): PASS
- Heat Aging and Environmental Cycling: Passes UL-746C
Buy the 1/2-5-8810 3M Thermally Conductive Adhesive Transfer Tape | myMectronic
Purchase 3M 1/2-5-8810 Thermally Conductive Adhesive Transfer Tape securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy 3M 1258810?
You can click on the BUY or RFQ button to purchase 1258810 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 1258810?
You can download the 1258810 datasheet or visit the 3M website for support.
Who is the manufacturer of 1258810?
3M
