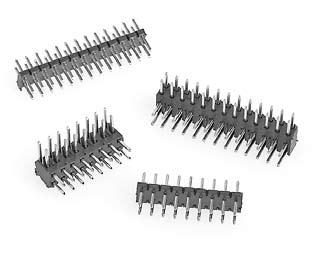

3M 1512408422RB Pin Strip Header
The 3M™ Pin Strip Header series features 2 mm by 2 mm solder tails offered in straight and right-angle surface-mount configurations, designed for reliable PCB connections. These headers are compatible with dual row sockets, minimize PCB space usage, and are constructed with high-temperature, RoHS-compliant materials like UL 94V-0 glass-filled LCP. They feature gold-washed copper alloy contacts with matte tin plating, supporting currents up to 1A and withstand voltages of 500V. Suitable for automated placement, they are available with vacuum caps in tape and reel packaging, ensuring ease of handling and precise installation in high-reliability applications.
3M 1512408422RB Pin Strip Header Specifications:
- Material: Glass-filled LCP
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: 50 μ
- Nickel / 30 μ
- Gold / 200 μ
- Matte Tin
- Current Rating: 1A
- Insulation Resistance: > 1×10^9 Ω at 250 VDC
- Withstanding Voltage: 500 V at Sea Level
- Temperature Rating: -55°C to +105°C
- Process Rating: Max 260°C (per J-STD-020C)
- Moisture Sensitivity Level: Level 1
Buy the Buy 3M Pin Strip Header Part Number 1512408422RB Online
Purchase the 3M Pin Strip Header with 2 mm solder tails today and enjoy fast, reliable online ordering. Designed for surface-mount applications, these headers support high-temperature soldering and automated placement, making them ideal for dense PCB designs. With RoHS compliance, gold and tin plating, and various configurations, they ensure excellent electrical performance and durability. Available in tape and reel packaging for efficient pick-and-place assembly, these headers provide a secure connection solution for electronics manufacturing, enhancing productivity and product reliability.
Buy 3M 1512408422RB pin strip header now and experience reliable, high-temperature PCB connections optimized for automated manufacturing.
Frequently Asked Questions
Where can I buy 3M 1512408422RB?
You can click on the BUY or RFQ button to purchase 1512408422RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 1512408422RB?
You can download the 1512408422RB datasheet or visit the 3M website for support.
Who is the manufacturer of 1512408422RB?
3M
