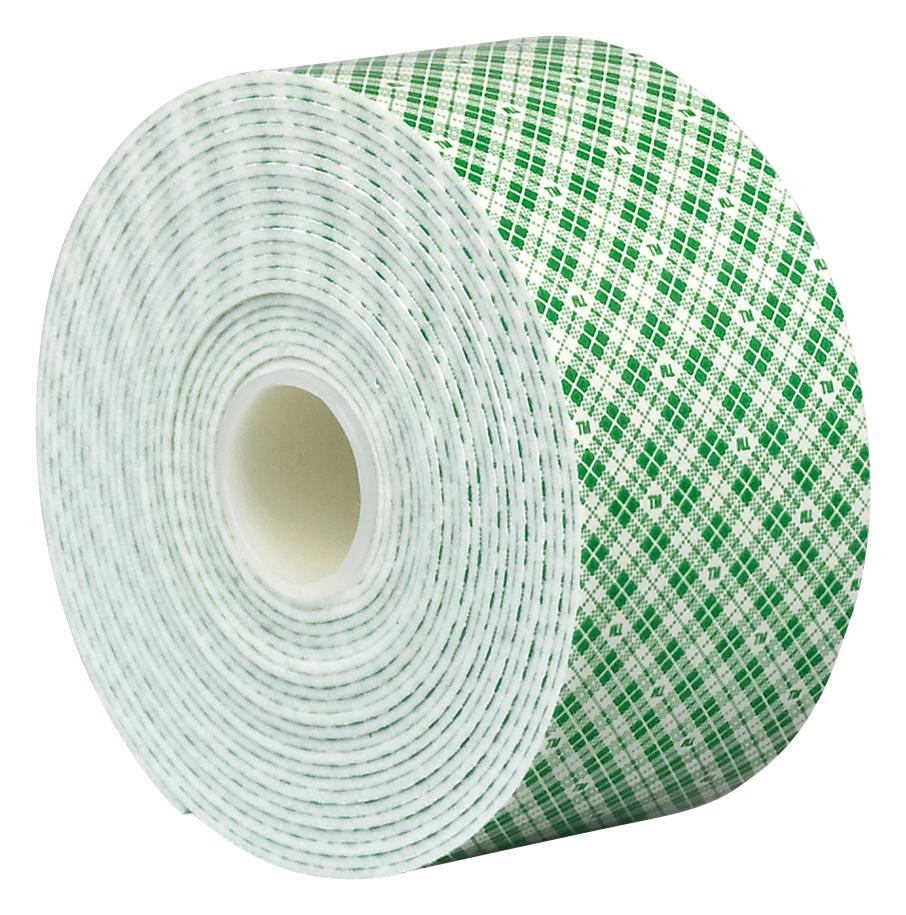

3M 154032W Urethane Foam Tape
This double-coated urethane foam tape features an open cell structure, high shear strength, and conformability for mounting, bonding, and holding applications. It is off-white, 0.031 inches (0.8 mm) thick with a polyester backing and silicone/rubber adhesive. Suitable for interior signage, nameplates, soap dispensers, air fresheners, acoustic panel mounting, wire clip attachment, and corner protection, it performs well in both interior and exterior environments when protected from the elements. Available in a 1-inch by 5-yard roll, with custom widths and configurations upon request.
3M 154032W Urethane Foam Tape Specifications:
- Adhesive Type: 100
- Adhesive Carrier: Polyurethane Foam
- Thickness: Nominal inch (mm) 0.031 (0.8)
- Thickness Tolerance: 0.025-0.040 inch (0.64-1.02 mm)
- Color: Natural
- Release Liner: 0.003 inch (0.08 mm)
- Liner Color: Green Plaid
- Approximate Density: 14 kg/m³ (225 kg/m³)
- Standard Length: 5 yards (4.57 meters)
- Available Width: 1 inch (25.4 mm)
- Normal Slitting Tolerance: + 1/32 inch (+ 0.8 mm)
- Static Shear at 22°C (72°F): 2000 gms
- Static Shear at 49°C (120°F): 1500 gms
- Static Shear at 66°C (150°F): 1000 gms
- Static Shear at 93°C (200°F): 1000 gms
- Tensile Strength: 90 psi (620 kPa)
- Elongation: 90%
- Short Term Temperature Resistance: 380°F (193°C)
- Long Term Temperature Resistance: 220°F (104°C)
- Solvent Resistance: No degradation with hydrocarbon solvents
- UV Resistance: No degradation after 7 days in UV chamber
- Cold Flex: No cracking at -20°F (-30°C)
- Thermal Conductivity: 0.036 BTU/hr/°F/ft² (0.062 watt/meter Kelvin)
- Dielectric Strength: 200-300 volts/mil
Buy the 3M Series Urethane Foam Tape: 154032W
Purchase 3M urethane foam tape 154032W online today and enjoy reliable high shear strength, conformability, and excellent performance for interior and protected outdoor applications. Ideal for mounting signage, nameplates, and acoustic panels, this versatile tape performs well in both indoor and outdoor roles when shielded from harsh elements. Its open cell structure offers excellent bonding to a variety of surfaces, making installation quick and easy. Available in a 1-inch by 5-yard roll, it’s perfect for achieving durable, long-lasting adhesion in commercial and industrial projects. Order now for fast delivery and professional-grade results.
Get 3M 154032W double-coated urethane foam tape today—designed for high shear strength and versatile mounting in various environments.
