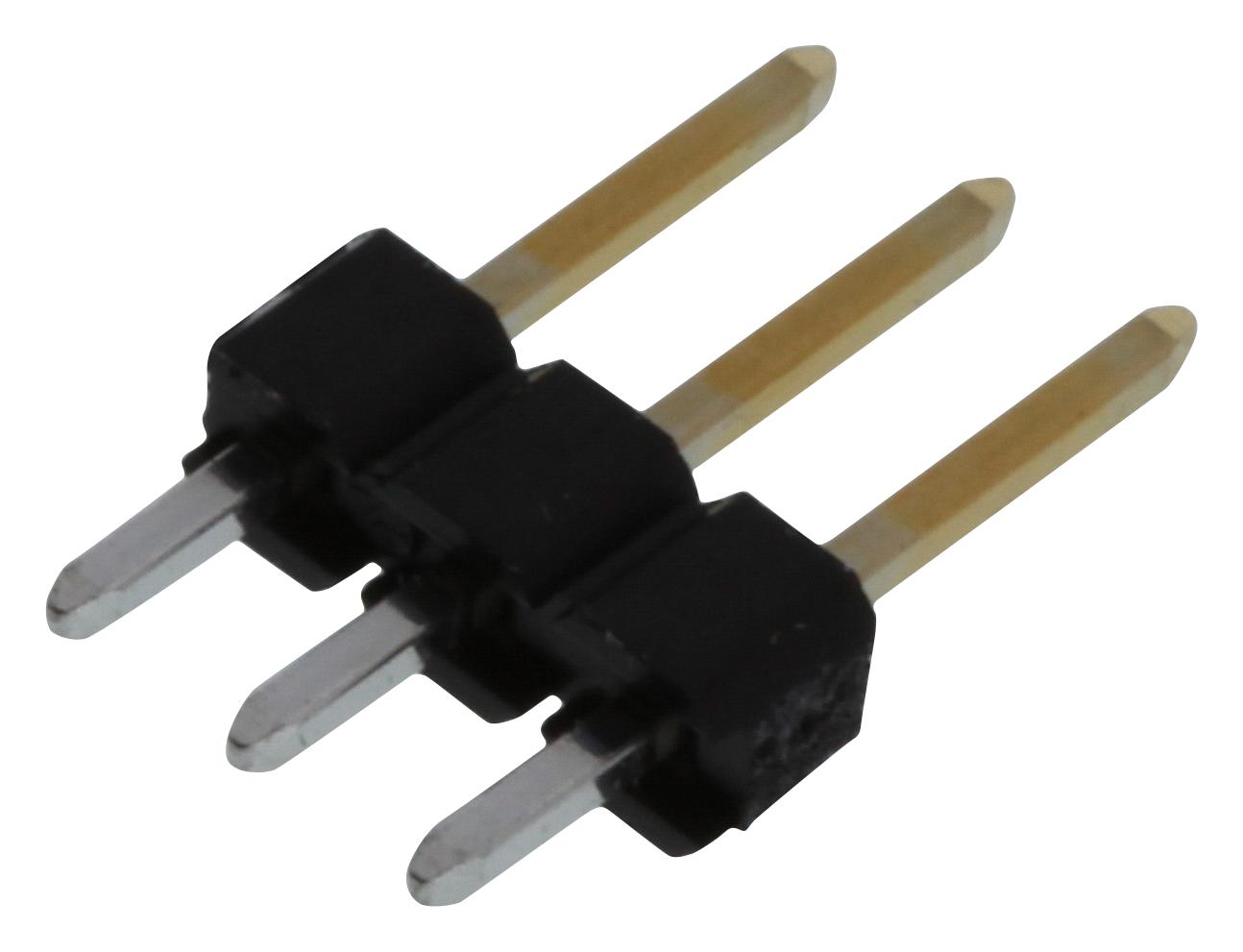

3M 23026111TG Pin Header
The 3M™ Pin Strip Header in the 2300 Series offers reliable electrical connectivity with options for straight or right angle solder tails. Constructed from glass-filled thermoplastic in black for durability, featuring copper alloy contacts with tin-lead or gold plating options, and a current rating of 3A. Ideal for PCB mounting, it includes board retention features and accommodates wire and socket connections in one or two-row configurations. Suitable for industrial and electronic applications requiring compliant, high-quality header connectors with a temperature rating from 55°C to +105°C and UL 94V-0 flammability rating.
3M 23026111TG Pin Header Specifications:
- Material: Glass filled thermoplastic, black
- Contact Material: Copper Alloy
- Plating: Nickel underplate, Tin or Gold wiping area
- Solder Tails: 100" (2.54 mm) Tin-lead or 120" (3.05 mm) kinked, solder tails
- Current Rating: 3A
- Temperature Range: -55°C to +105°C
- Flammability: UL 94V-0
- Board retention feature available
- Connector series: 2300 Series
- Pin configurations: one or two rows, straight or right angle
- Dimensions: varies depending on configuration, typical hole spacing 0.100" (2.54 mm)
Buy the Buy 3M Pin Strip Header Part Number 23026111TG Online
Get the 3M Pin Strip Header in the 2300 Series online today. Featuring durable construction with glass-filled thermoplastic, copper alloy contacts, and optional gold or tin plating. Designed for reliable PCB connection with straight or right angle solder tails, suitable for industrial and electronic applications, supporting temperature ranges from -55°C to +105°C, and rated for 3A current. Easy to install with board retention features and available in one or two-row configurations, making your projects both professional and dependable.
Order your 3M Series2300 23026111TG pin strip header today and ensure high-quality, reliable PCB connections for your electronic projects.
Frequently Asked Questions
Where can I buy 3M 23026111TG?
You can click on the BUY or RFQ button to purchase 23026111TG from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 23026111TG?
You can download the 23026111TG datasheet or visit the 3M website for support.
Who is the manufacturer of 23026111TG?
3M
