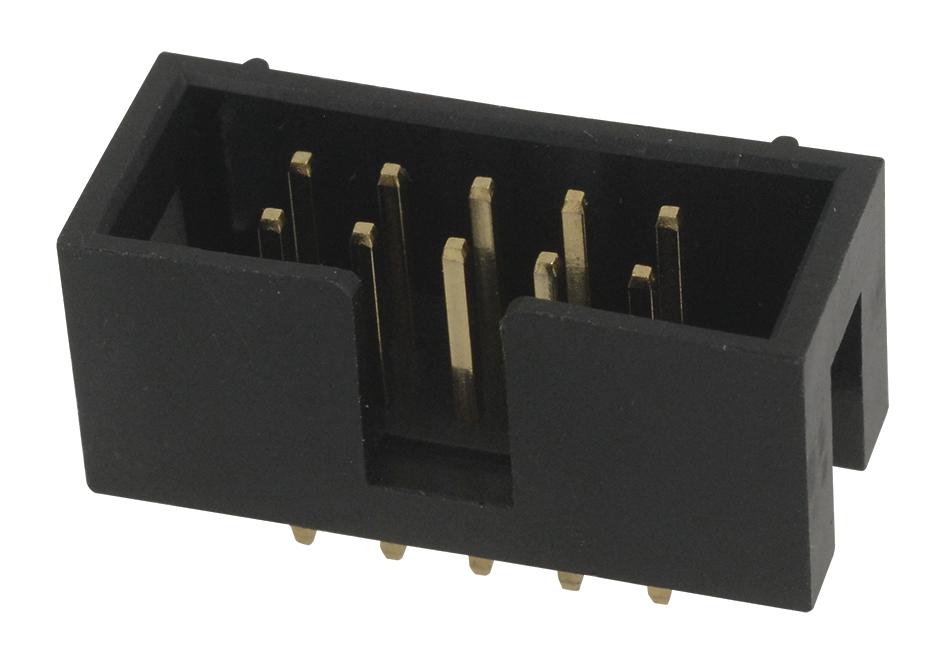

3M 303106002HB Low Profile Connector
This 0.100 inch low-profile connector features four-wall construction available in straight and right-angle options, suitable for compact electronic assemblies. Made from glass-filled polyester (PBT), it offers UL 94V-0 flammability rating and comes with a sturdy brass contact with gold flash wiping area and nickel underplating for reliable conductivity. Rated for 1A current, it withstands voltages up to 500V and operates efficiently within -55°C to +105°C temperature range. Its black color and precise mounting pattern ensure easy integration in various electronic devices.
3M 303106002HB Low Profile Connector Specifications:
- Insulation Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Brass
- Plating: Nickel underplating, Gold Flash wiping area
- Current Rating: 1A
- Insulation Resistance: >1 x 10⁹ Ω at 500V
- Withstanding Voltage: 500 V at Sea Level
- Temperature Rating: -55°C to +105°C
- Maximum Process Temperature: 191°C
- UL File No.: E68080
Buy the Buy 3M Low Profile Connector Part Number 303106002HB Online
Purchase the 3M low-profile connector series 303106002HB online today to benefit from its compact design, gold flash contacts, and durable construction. Perfect for tight spaces, this connector provides reliable electrical performance within -55°C to +105°C, rated for 1A and capable of withstanding 500V. Its sturdy brass contacts and UL 94V-0 flammability rating ensure safety and longevity. Elevate your electronics assembly with this RoHS compliant connector, easily ordered online for quick delivery, and integrate it seamlessly into your designs.
Order your 3M series 303106002HB low-profile connector today and ensure reliable, space-saving connections in your electronic projects.
Frequently Asked Questions
Where can I buy 3M 303106002HB?
You can click on the BUY or RFQ button to purchase 303106002HB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 303106002HB?
You can download the 303106002HB datasheet or visit the 3M website for support.
Who is the manufacturer of 303106002HB?
3M
