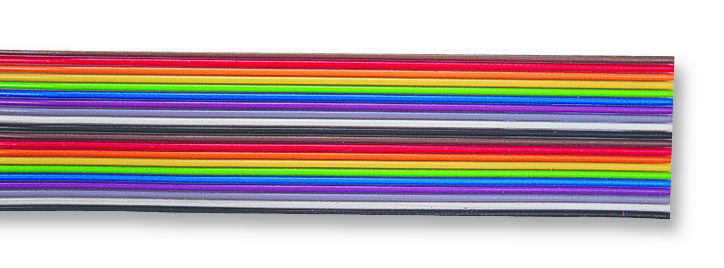

3M 330216 Flat Cable
3M™ Color Coded Flat Cable is a flexible, 28 AWG stranded wire product with PVC insulation, designed for mass termination to IDC connectors. It features color coding for easy wire identification, RoHS compliance, and is zippable for branching or discrete termination, making it suitable for a variety of electronic applications requiring reliable, flexible interconnects with standard 0.050-inch pitch. This cable offers excellent electrical performance, including a voltage rating of 300V in the US and 150V in Canada, with a temperature range from -20°C to +105°C, meeting UL VW-1 flammability standards.
3M 330216 Flat Cable Specifications:
- Insulation Material: Polyvinyl Chloride (PVC)
- Wire Gauge: 28 AWG, stranded, 7 x 36 AWG
- Conductors: Tinned stranded copper
- Voltage Ratings: 300V in USA, 150V in Canada
- Temperature Range: -20°C to +105°C (USA), -20°C to +80°C (Canada)
- Flammability Rating: VW-1
- Electrical Characteristics: Capacitance 14.1 pF/ft, Unbalanced impedance >1x10^6Ω/10 ft, Propagation Velocity 69%
- Physical Dimensions: Pitch: 0.050 inch, various sizes with typical connector separation
- Color Coding: 10-color repeat pattern, clear carrier
- RoHS Compliance: Yes
- UL Listing: E42769, Style 20462
Buy the Buy 3M Flat Cable Part Number 330216 Online
Order the 3M Flat Cable with part number 330216 online for versatile, color-coded interconnect solutions suitable for IDC connectors. This 28 AWG stranded wire features PVC insulation, RoHS compliance, and excellent electrical performance, including a voltage rating of 300V in the US. Its flexible design ensures easy routing, making it ideal for electronic assemblies requiring reliable, durable wiring. Available in standard lengths, this cable’s specifications meet UL VW-1 flammability standards, and it operates in temperatures from -20°C to +105°C, ensuring safe, long-lasting use across various applications.
Get 3M Flat Cable Part Number 330216 today—designed for flexible, reliable wiring with color coding and high-quality PVC insulation.
Frequently Asked Questions
Where can I buy 3M 330216?
You can click on the BUY or RFQ button to purchase 330216 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 330216?
You can download the 330216 datasheet or visit the 3M website for support.
Who is the manufacturer of 330216?
3M
