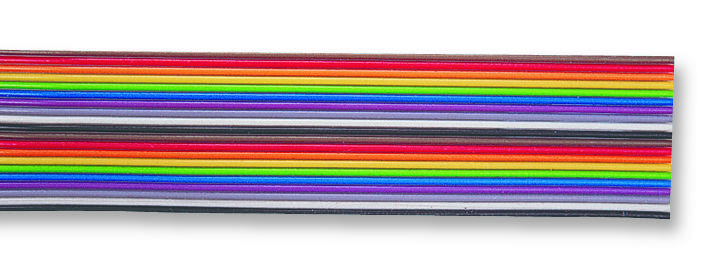

3M 330225 Flat Cable
This 3M flat cable is a durable, flexible, and color-coded wiring solution designed for efficient electronic and electrical applications. Made from PVC insulation, it features 28 AWG stranded tinned copper conductors arranged on .050 inch centers, enabling easy mass termination to IDC connectors. Its clear carrier with a product length option of 100 or 300 feet makes it suitable for various industrial and electronic wiring tasks. The cable's insulation resistance exceeds 1 x 10^9 ohms per 10 feet, with a voltage rating of 300V in the US and 150V in Canada. Temperature ratings are -20°C to +105°C, complying with UL flammability standards VW-1 and FT1, ensuring safety and reliability.
3M 330225 Flat Cable Specifications:
- Insulation Material: Polyvinyl Chloride (PVC)
- Conductor Material: Tinned Stranded Copper
- Conductor Size: 28 AWG
- Number of Conductors: Varies (e.g., 09, 10, 14, 20, 26, 34, etc.)
- Center-to-Center Spacing: .050 inch
- Insulation Resistance: > 1 x 10^9 ohms per 10 feet
- Voltage Rating: US: 300V, Canada: 150V, EU: <50V
- Temperature Range: -20°C to +105°C (US), -20°C to +80°C (Canada)
- Flammability Rating: VW-1 (US), FT1 (Canada)
- Cable Length Options: 100 and 300 feet reels
- Color Coding: 10 color repeat (e.g., Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White, Black)
- Physical Dimensions: Conductor diameter approximately 0.127 inch for 28 AWG, overall insulation thickness varies per model
- Application: Suitable for mass termination to IDC connectors, discrete wiring, branching, electronic devices, control systems
Buy the Buy 3M Flat Cable Part Number 330225 Online
Order the 3M Flat Cable 330225 online now to enjoy reliable, flexible wiring with color-coded identifiers, UL compliance, high insulation resistance, and voltage ratings up to 300V. Perfect for electronic, industrial, and control system applications, the cable provides easy termination, durability, and safety in various environments. Available in standard lengths of 100 and 300 feet, this cable ensures seamless integration into your projects, saving time and ensuring optimal performance for all your wiring needs.
Get 3M Flat Cable 330225 today—built for flexibility, high reliability, and easy installation in electronic and industrial wiring.
Frequently Asked Questions
Where can I buy 3M 330225?
You can click on the BUY or RFQ button to purchase 330225 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 330225?
You can download the 330225 datasheet or visit the 3M website for support.
Who is the manufacturer of 330225?
3M
