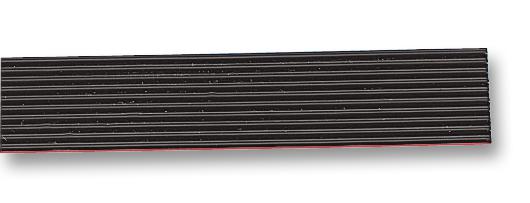

3M 331906100SF High Flex Cable
The 3M High Flex Life Cable in the 3319 Series offers exceptional durability with a flex life of 100 million cycles at 1 3/4 inch diameter. Constructed with 19 strands of high-strength copper alloy, it ensures longevity in dynamic applications. The cable features .050 inch wire spacing with 28 AWG stranded conductors, suitable for mass termination to various IDC connectors. Its PVC insulation provides excellent electrical properties, supporting voltages up to 300V, and it is zipable for branching or discrete termination. Designed for reliability, it maintains performance from -20°C to +105°C, with flame ratings of VW-1 and FT1, meeting international safety standards.
3M 331906100SF High Flex Cable Specifications:
- Conductor Material: Copper Alloy, 89% Conductivity
- Conductor Count: 19 strands of 28 AWG, stranded, silver plated
- Insulation Material: Polyvinyl Chloride (PVC)
- Insulation Color: Black
- Voltage Rating: 300V (US and Canada), <50V (EU)
- Temperature Range: -20°C to +105°C
- Flammability Ratings: VW-1 (US), FT1 (Canada)
- Flex Life: 100 million cycles at 1 3/4 inch diameter
- Insulation Resistance: > 1 x 10^10 ohms/10 ft
- Characteristic Impedance: 1030-1719 ohms
- Capacitance: 13.6 pF/ft, 44.62 pF/m
- Inductance: 0.14 μH/ft, 0.47 μH/m
- Propagation Delay: 1.40 ns/ft, 4.59 ns/m
- Velocity of Propagation: 73%
- Cable Lengths: 100 ft or 300 ft rolls, customizable upon request
- Compliance: RoHS 2002/95/EC, Exemptions for lead in equivalent areas, decaBDE in insulation
Buy the 3M Series 3319 High Flex Cable: 331906100SF
Purchase the 3M High Flex Cable in the 3319 Series today for your dynamic electronic and industrial applications. Its high flex life of 100 million cycles ensures long-term performance even in demanding environments. With flexible, stranded copper conductors and PVC insulation, it supports voltages up to 300V and temperature ranges from -20°C to +105°C. The cable is flame rated with VW-1 and FT1, making it suitable for various safety standards. Ideal for branching, discrete termination, and mass termination to IDC connectors, it offers reliable, durable, and flexible electrical connections for industrial, automation, and electronic systems. Available in standard lengths with custom options to meet your project needs.
Get 3M 331906100SF high flex cable today—built for durability, flexibility, and reliable electronic connections over millions of cycles.
Frequently Asked Questions
Where can I buy 3M 331906100SF?
You can click on the BUY or RFQ button to purchase 331906100SF from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 331906100SF?
You can download the 331906100SF datasheet or visit the 3M website for support.
Who is the manufacturer of 331906100SF?
3M
