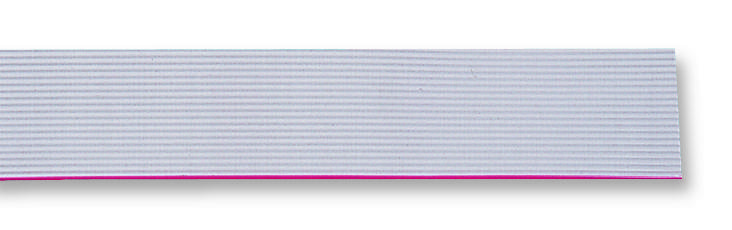

3M 336506 Flat Cable
The 3M™ Round Conductor Flat Cable in the 3365 Series features 28 AWG stranded copper conductors with PVC insulation. Designed for easy termination and flexible installation, it offers Voltage ratings of 300V with excellent electrical and environmental performance. The cable is available in gray or black, with a standard thickness suitable for range of electronic and industrial applications. Its durable construction provides extended product life, making it ideal for connecting components in complex circuits and flexible wiring harnesses, supporting reliable signal transmission and ease of routing in tight spaces.
3M 336506 Flat Cable Specifications:
- Insulation Material: Polyvinyl Chloride (PVC)
- Color: Standard Gray or Black
- Voltage Rating: 300V
- Conductors: 28 AWG, 7 x 36 stranded copper, tinned
- Maximum Temperature: +105°C
- Flammability Rating: VW-1 (USA), FT1 (Canada)
- Insulation Resistance: > 1 x 10^10 ohms per 10 ft
- Capacitance: 14.47 pF/ft
- Inductance: 0.15 µH/ft
- Propagation Delay: 1.47 ns/ft
- Velocity of Propagation: 69% of light speed
- Conductor Diameter: approximately 0.127 inches
- Physical Dimensions: varies by conductor count, e.g., 0.300 inches for 6 conductors
- Operating Temperature Range: -20°C to +105°C
Buy the 3M Series 3365 Flat Cable: 28 AWG Stranded PVC Wire
Enhance your wiring solutions with the 3M Series 3365 flat cable, featuring 28 AWG stranded copper conductors with durable PVC insulation. Suitable for various electronic, industrial, and wiring applications, it offers a voltage rating of 300V and excellent flexibility for easy routing and secure connections. Available in gray or black, this cable ensures long-lasting performance with high insulation resistance and flammability ratings compliant with UL and CSA standards. Purchase online now to ensure your projects are equipped with dependable, professional-grade wiring solutions.
Order your 3M Series 3365 28 AWG stranded flat cable today and give your electronic projects the reliable connectivity and flexibility they need.
Frequently Asked Questions
Where can I buy 3M 336506?
You can click on the BUY or RFQ button to purchase 336506 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 336506?
You can download the 336506 datasheet or visit the 3M website for support.
Who is the manufacturer of 336506?
3M
