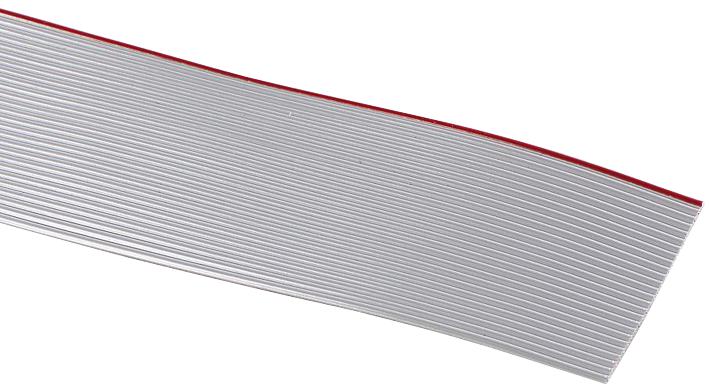

3M 336526 Flat Conductor Cable
The 3M™ Round Conductor Flat Cable 3365 Series is a flexible, stranded wire cable with .050 inch spacing and 28 AWG tinned copper conductors ideal for broad industry applications. Made of durable PVC insulation, it offers excellent electrical performance with a 300V rating, resistance >1 x 10^10 ohms per 10 ft, and impedance features suitable for unbalanced and balanced circuits. The cable supports temperatures from -20°C to +105°C and complies with VW-1 and FT1 flammability ratings, making it suitable for complex wiring systems requiring reliable, high-quality connections.
3M 336526 Flat Conductor Cable Specifications:
- Material: Polyvinyl Chloride (PVC)
- Color: Gray or Black
- Conductor: 28 AWG, 7 x 36 Tinned Stranded Copper
- Voltage Rating: 300V (USA, Canada, EU <50V)
- Insulation Resistance: > 1 x 10^10 ohms/10 ft
- Temperature Range: -20°C to +105°C
- Flammability Rating: VW-1 (USA), FT1 (Canada)
- Characteristic Impedance: Unbalanced, Balanced
- Capacitance: 14.47 pF/ft (47.5 pF/m), 8.14 pF/ft (26.7 pF/m)
- Inductance: 0.15 uH/ft (0.49 uH/m), 0.24 uH/ft (0.79 uH/m)
- Propagation Delay: 1.47 ns/ft (4.86 ns/m), 1.4 ns/ft (4.59 ns/m)
- Velocity of Propagation: 69%, 73%
Buy the 3M Series 3365 Cable: 28 AWG Stranded PVC Flat Wire
Order the 3M Series 3365 flat conductor cable online today to benefit from high-quality PVC insulation and 28 AWG stranded copper conductors. Perfect for broad line IDC connector applications, this cable features a .050 inch pitch, 300V voltage rating, and flame-resistant ratings VW-1 and FT1. Its flexible stranded wire construction ensures durability and extended life, making it ideal for complex wiring needs in industrial, electronic, and control systems. Purchase online now for swift delivery and secure connections.
Buy 3M 3365 Series 28 AWG stranded flat cable now and experience unmatched reliability and performance for your wiring projects.
Frequently Asked Questions
Where can I buy 3M 336526?
You can click on the BUY or RFQ button to purchase 336526 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 336526?
You can download the 336526 datasheet or visit the 3M website for support.
Who is the manufacturer of 336526?
3M
