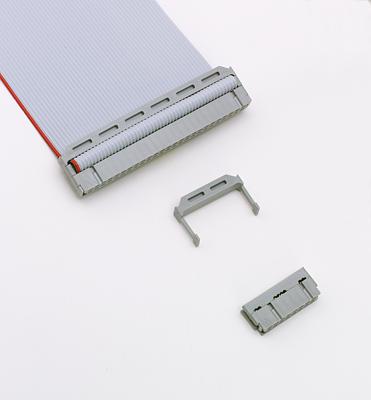

3M 3385G600 Wiremount Connector
A 0.100-inch pitch wire-to-board connector, preassembled for easy installation with 0.050-inch pitch cable. It offers optional plastic or metal strain relief to ensure secure cable management and durability. This industry-standard IDC socket features positive locking metal clips for high cover retention and mates with 3M headers, plugs, and pin strips for quick connect/disconnect capabilities. Made from flame-retardant glass-filled polyester UL 94V-0, it supports applications requiring reliable electrical connection, with current ratings up to 3A, and temperature ratings from -55°C to +105°C.
3M 3385G600 Wiremount Connector Specifications:
- Pitch: 0.100 inches
- Cable Pitch: 0.050 inches
- Material: Glass filled polyester UL 94V-0
- Color: Gray
- Contact Material: Copper Alloy
- Plating: Nickel over copper (100 wv), Gold over Nickel (30 u”), MIL-G-45204 Type II, Grade C
- Current Rating: 3A per contact under specified test conditions
- Voltage: 1000 V at Sea Level
- Temperature Range: -55°C to +105°C
- Flammability: UL 94V-0
- Wire Compatibility: 26 and 28 AWG solid and stranded
- Mechanical: Positive locking metal clips for high cover retention, optional plastic or metal strain relief, polarizing features for mating
Buy the Buy 3M Wiremount Socket Part Number 3385G600 Online
Purchase the 3M wiremount connector with 0.100-inch pitch and optional strain relief to ensure secure and efficient cable management. Designed for quick and easy assembly, this socket supports high-reliability applications in electronics and industrial equipment. Made from UL-rated flame-retardant polyester, it accommodates 26 and 28 AWG wires, providing optimal current carrying capacity up to 3A and temperature resistance from -55°C to +105°C. Ideal for engineers seeking durable, industry-standard interconnect solutions with quick disconnect features.
Get 3M 3385G600 today—built for reliable electrical connections and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy 3M 3385G600?
You can click on the BUY or RFQ button to purchase 3385G600 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 3385G600?
You can download the 3385G600 datasheet or visit the 3M website for support.
Who is the manufacturer of 3385G600?
3M
