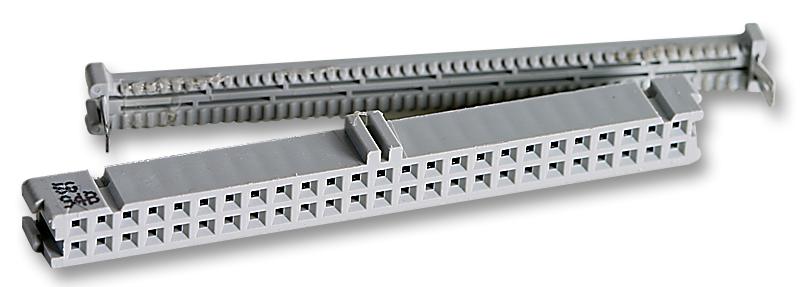

3M 34256600 Wiremount Socket
The 3M™ Wiremount Socket in the 3000 Series offers a reliable, industry-standard IDC connection compatible with 3M headers, plugs, and pin strips for quick disconnect. It features optional plastic or metal strain relief, positive metal locking 'J' clips, and accepts flat cable or discrete wire with military or center bump polarization. Made from glass-filled polyester, it is UL 94V-0 rated, with copper alloy contacts plated with gold and nickel for durability. Suitable for applications requiring high cover retention, high current ratings, and temperature resilience from -55°C to +105°C, complying with MIL and IEC standards.
3M 34256600 Wiremount Socket Specifications:
- Insulation Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Copper Alloy
- J-Clip Material: Stainless Steel
- Plating: Nickel underplating, gold wiping area
- Wire Accommodation: 26 and 28 AWG Solid and Stranded
- Current Rating: 26 AWG 475 mA, 28 AWG 450 mA
- Withstanding Voltage: 1000V at sea level
- Insulation Resistance: > 1 x 10^9 Ω at 500 V
- Temperature Rating: -55°C to +105°C
- Dimensions: Approximately 0.100” x 0.100” pitch, with specific contact sizes and spacing
- UL File No.: E68080
- Certifications: UL Listed
- Material: Glass Filled Polyester (PBT)
Buy the 3M Series 3000 Wiremount Socket: 34256600
Purchase the 3M Series 3000 Wiremount Socket online today for dependable IDC connectivity, optional strain relief, and high current capacity suitable for industrial, military, and automation systems. Engineered from durable, UL 94V-0 rated materials, it offers excellent temperature performance from -55°C to +105°C. Compatible with flat cable or discrete wire, with positive locking clips and polarization options. Ensure quality, safety, and quick installation for high-reliability electronic assemblies by buying online now.
Get 3M 34256600 wiremount socket today—built for precision, reliable electrical connections, and long-lasting industrial durability.
Frequently Asked Questions
Where can I buy 3M 34256600?
You can click on the BUY or RFQ button to purchase 34256600 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 34256600?
You can download the 34256600 datasheet or visit the 3M website for support.
Who is the manufacturer of 34256600?
3M
