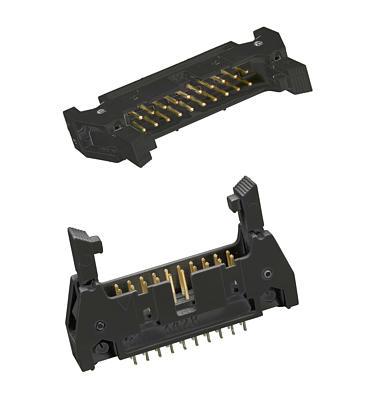

3M 34295003 Four-Wall Header
This durable connector features a .100 inch latch and ejector system available in straight and right-angle configurations. Designed for secure fastening and easy ejecting, it is suitable for electronic assemblies requiring reliable, easy-to-use interconnect solutions. Made with high-quality materials including glass-filled polyester insulators and copper alloy contacts, it supports high temperature operations up to 105°C, with optional high-temperature insulator versions. Compatible with RoHS standards, with various latch styles, polarizing posts, and mounting hardware options for flexible assembly. Ideal for industrial electronics demanding precise, robust connections.
3M 34295003 Four-Wall Header Specifications:
- Insulator Material: Glass Filled Polyester (PBT), High Temp Option: PCT
- Flammability: UL94V-0
- Contact Material: Copper Alloy
- Plating: Nickel Underplating, Gold Wiping Area
- Current Rating: Up to 5A depending on contact, 1 contact powered
- Insulation Resistance: >1 x 10^9 Ω at 500 V
- Withstanding Voltage: 1,000 V at sea level
- Temperature Rating: -55°C to +105°C, High Temp Insulator: 260°C (PCT), 191°C (PBT)
- Moisture Sensitivity Level: 1
- Dimensions: Various sizes with heights from approximately 0.505 in to 3.805 in, widths matching .100 inch pitch
- Mounting Hardware: Includes mounting holes, optional polarizing posts
- Compliance: RoHS, UL Listed: E68080
- Additional features: Optional ejector latches, polarizing keys, and mounting hardware available
Buy the 3M 34295003 – Reliable Interconnect for Industrial Applications
Purchase the 3M Four-Wall Header online today for industrial electronics that demand high reliability, easy installation, and compliance with RoHS standards. This connector delivers a secure fit with optional latch and ejector systems, suitable for high-temperature reflow soldering and no-lead operations. Made with durable glass-filled polyester insulators and copper alloy contacts, it offers excellent insulation resistance and withstands voltages up to 1,000 V. Perfect for demanding industrial, automation, and electronic manufacturing environments, ensuring robust and reliable connections every time.
Buy 3M 34295003 now and experience unmatched reliability and performance in electronic assemblies with secure and easy-to-eject connection features.
Frequently Asked Questions
Where can I buy 3M 34295003?
You can click on the BUY or RFQ button to purchase 34295003 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 34295003?
You can download the 34295003 datasheet or visit the 3M website for support.
Who is the manufacturer of 34295003?
3M
