3M 34315003 Four-Wall Header

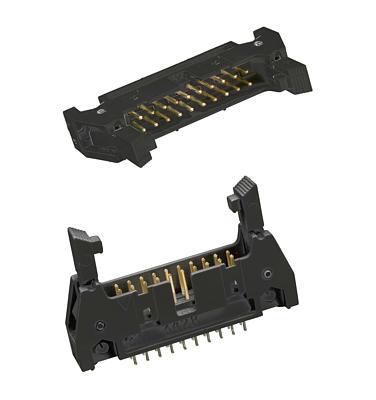

The 3M 3000 Series four-wall header features a 0.100-inch latch and ejector available in straight and right-angle configurations, suitable for electronic and mechanical assemblies. Constructed with glass-filled polyester insulators and copper alloy contacts, it offers high temperature resilience up to 105°C for PBT and 260°C for high-temp PCT versions. The header supports current ratings of up to 5A per contact, with UL listing and moisture sensitivity level 1. It incorporates optional polarizing keys, mating strain relief, and lateral mounting holes for versatile installation. The product ensures reliable electrical performance with insulation resistance >1×10^10Ω at 500V and withstands 1,000V at sea level. Designed for precise board-to-board connections, with optional latch types, polarizing posts, and various hardware configurations, it is ideal for demanding industrial applications requiring secure, high-temperature interconnection solutions.
3M 34315003 Four-Wall Header Specifications:
- Insulator Material: Glass Filled Polyester (PBT) or High Temp PCT
- Insulator Flammability: UL94V-0
- Contact Material: Copper Alloy
- Contact Plating: Nickel underplating with gold wiping area, optional matte tin or tin-lead
- Current Rating: Up to 5.00A per contact
- Insulation Resistance: >1×10^10Ω at 500V
- Withstanding Voltage: 1,000V at sea level
- Operating Temperature Range: -55°C to +105°C
- Process Temperature for High Temp PCT: 260°C, for PBT: 191°C
- Moisture Sensitivity Level: 1 (high Temp PCT versions only)
- Physical Dimensions: Length 1.065-3.965 inches (varies by model), Width 0.100 inches, Notches for polarization
- Mounting Options: Through-hole with mounting holes, optional polarizing posts
- Hardware Compatibility: #4-24 screw for vertical mount, #2-56 bolt for right-angle mount
- UL File Number: E68080
- Compliance: RoHS, UL Listed
Buy the 3M 34315003 – Reliable Four-Wall Header for Industrial Applications
Discover the high-quality 3M Four-Wall Header, designed for robust industrial and electronic applications. Featuring a 0.100-inch latch and ejector, it offers versatile straight and right-angle options, ensuring secure board-to-board connections. Built with high-temp insulators and copper alloy contacts, this header supports demanding environments with temperatures up to 105°C (PBT) and 260°C (PCT). Its reliable insulation resistance, UL listing, and optional polarizing features make it the perfect choice for engineers seeking durability and precision in interconnecting solutions. Order online today for quick delivery and dependable quality.
Order your 3M Series 34315003 high-temperature four-wall header today and ensure dependable, high-performance electrical connections in your projects.
