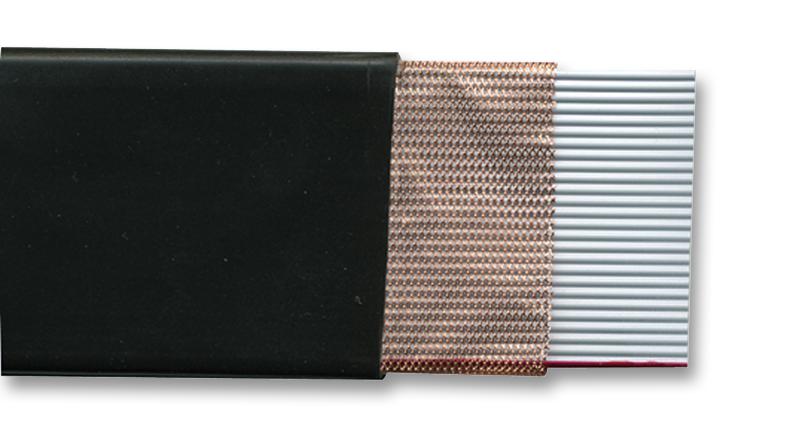

3M 351710 Shielded Flat Cable
The 3M 3517-10 shielded flat cable is a versatile solution for applications demanding reliable signal transmission and protection from electromagnetic interference. Its .050″ PVC jacket provides durability, while the 28 AWG stranded conductors ensure flexibility. The 360-degree expanded copper shielding offers excellent shielding effectiveness, minimizing signal degradation. The cable's design allows for branching or discrete terminations, making it suitable for complex wiring configurations. It is commonly used in data transmission, instrumentation, and industrial control systems where signal integrity is critical.
3M 351710 Shielded Flat Cable Specifications:
- Material: Polyvinyl Chloride (PVC)
- Color: Black
- Primary Material: PVC
- Primary Color: Gray
- Conductors: 28 AWG 7 × 36 Tinned Stranded Copper
- Shielding Material: Expanded Copper
- Voltage Rating: USA: N.E.C. 725, CL2 or AWM 300V; Canada: 300V; EU: <50V
- Insulation Resistance: > 1 × 10[10] Ω/10 ft.
- Unbalanced Characteristic Impedance: 70 Ω
- Balanced Characteristic Impedance: 119 Ω
- Capacitance: 21.5 pF/ft (70.5 pF/m)
- Inductance: .11 µH/ft (0.36 µH/m)
- Propagation Delay: 1.51 ns/ft (4.95 ns/m)
- Velocity of Propagation: 67%
- Temperature Rating: USA: CL2; 75°C or AWM: --20°C to +80°C; Canada: 80°C
- Flammability Rating: USA: N.E.C. 725, CL2; Canada: FT1
