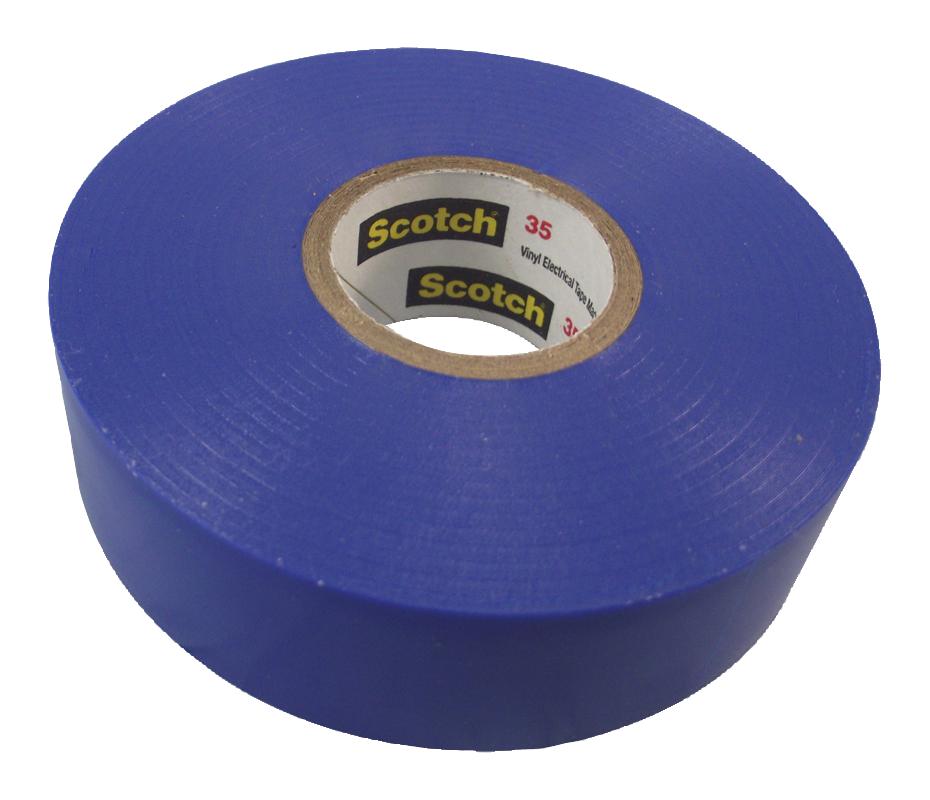

3M 3519MMBLUE Electrical Insulation Tape
Scotch Vinyl Electrical Tape 35 is a 7 mil (0.178 mm) polyvinyl chloride (PVC) color-coding tape suitable for phase identification, electrical insulation, and safety marking. It performs well over temperatures up to 221°F (105°C), adheres smoothly, and conforms above 32°F (0°C). Available in nine fade-resistant colors including blue, brown, gray, green, orange, red, violet, white, yellow, and pink, this tape offers excellent electrical and mechanical properties. It is UL listed, CSA certified, and RoHS compliant, ensuring safe, flame-retardant, and long-lasting insulation for wiring, motor leads, and piping systems.
3M 3519MMBLUE Electrical Insulation Tape Specifications:
- Thickness: 7 mils (0.178 mm)
- Color options: Blue, Brown, Gray, Green, Orange, Red, Violet, White, Yellow, Pink
- Adhesive: Pressure-sensitive rubber
- Continuous Operating Temperature: 221°F (105°C)
- Breaking Strength: 17 lb/in (30.3 N/10 mm)
- Elongation at Break: 225%
- Adhesion to Steel: 20 oz/in (2.2 N/10 mm)
- Voltage Rating: 600 volts (UL 510)
- Dielectric Breakdown: 8,750 volts (standard), 7,875 volts (wet)
- Insulation Resistance: > 1x10^10 megohms
- Shelf Life: 5 years from manufacture when stored properly
- Standards: UL listed, CSA certification, RoHS compliant
Buy the 3M 3519MMBLUE – Reliable Insulating Electrical Tape for Industrial Applications
Purchase the 3M Vinyl Electrical Tape 35 online today to ensure secure, flame-retardant insulation for wiring, motor leads, and piping systems. With a 7 mil thickness, excellent conformability, and temperature resistance up to 221°F, this tape provides durable protection against moisture, abrasion, and electrical faults. Available in nine fade-resistant colors, it’s ideal for phase identification, safety marking, and electrical insulation in industrial environments. Order now for quick delivery and reliable performance in demanding applications.
Buy 3M 3519MMBLUE now and experience unmatched reliability and performance for electrical insulation and color coding tasks.
Frequently Asked Questions
Where can I buy 3M 3519MMBLUE?
You can click on the BUY or RFQ button to purchase 3519MMBLUE from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 3519MMBLUE?
You can download the 3519MMBLUE datasheet or visit the 3M website for support.
Who is the manufacturer of 3519MMBLUE?
3M
