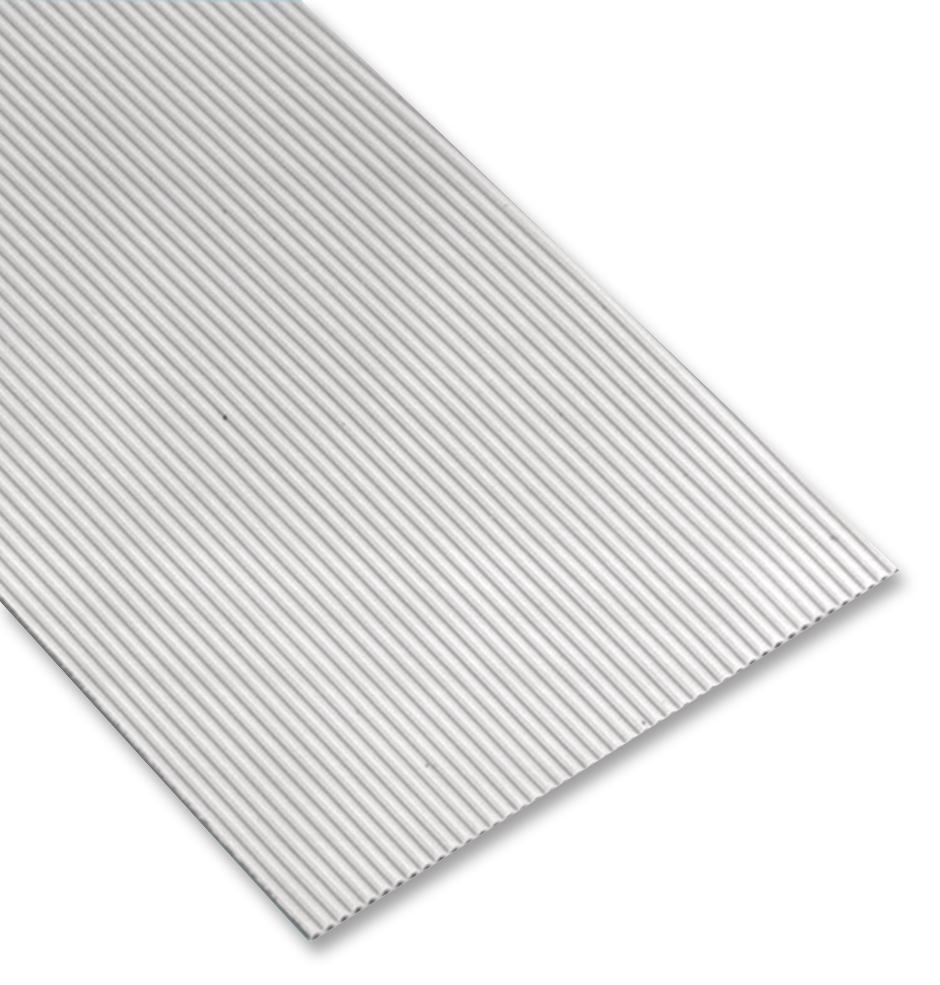

3M 362514 Flat Cable
The 3M™ Round Conductor Flat Cable 3625 Series features 28 AWG stranded conductors on 1 mm wire spacing, made of PVC insula tion, and designed for mass termination to metric connectors. It offers flexibility, extended product life, and is zip-enabled for branching or discrete termination. This cable provides a voltage rating of 300V with excellent electrical properties, including insulation resistance > 1 x 10'° Q/10 ft, characteristic impedance, capacitance, and low inductance. Suitable for use in diverse electronic and interconnection applications, it complies with fire safety standards and RoHS regulations, ensuring safe operation across temperatures from -20°C to +105°C.
3M 362514 Flat Cable Specifications:
- Insulation Material: Polyvinyl Chloride (PVC)
- Conductor: 28 AWG stranded, 7 x 36 AWG, Tinned Copper
- Voltage Rating: 300V (USA, Canada, EU <50V)
- Insulation Resistance: > 1 x 10'° Q/10 ft
- Temperature Range: -20°C to +105°C
- Flammability Rating: VW-1 (USA), FT1 (Canada)
- Characteristic Impedance: 89Ω unbalanced, 146Ω balanced
- Capacitance: 54.5 pF/m (16.6 pF/ft), 32.2 pF/m (9.8 pF/ft)
- Inductance: 0.43 μH/m (0.14 pH/ft), 0.68 μH/m (0.21 pH/ft)
- Propagation Delay: 4.86 ns/m (1.48 ns/ft), 4.69 ns/m (1.43 ns/ft)
- Velocity of Propagation: 69%
- Compliance: RoHS, UL Style No: 2651, UL File No: E42769
Buy the Buy 3M Round Conductor Flat Cable Part Number 362514 Online
Purchase the 3M Flat Cable series 3625 online today for versatile, high-quality interconnection solutions. Perfect for mass termination, this 28 AWG cable with PVC insulation offers exceptional flexibility and durability. Rated at 300V, it performs reliably in temperature ranges from -20°C to +105°C, meeting RoHS and UL standards for fire safety and environmental compliance. Whether for manufacturing, repair, or custom projects, order now and ensure your assembly's electrical integrity with this premium flat cable, designed for long-lasting performance and easy branching or discrete termination.
Order your 3M Series3625 28 AWG Flat Cable today and enhance your electronic projects with reliable, flexible wiring solutions.
