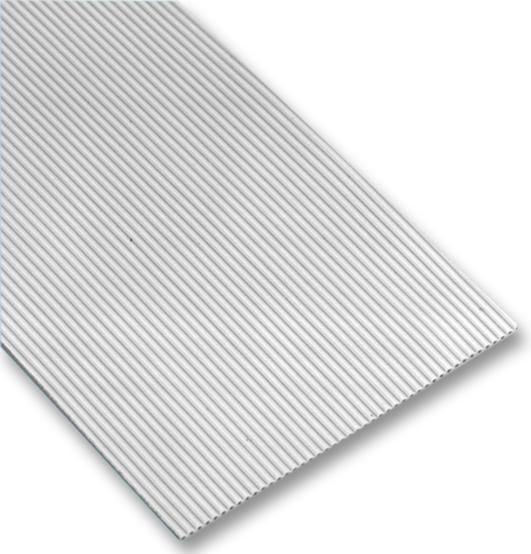

3M 362526 Flexible Flat Cable
The 3M™ Round Conductor Flat Cable is a flexible, mass-termination cable featuring 28 AWG stranded tinned copper conductors on 1 mm spacing, designed for reliable connections in industrial and electronic applications. It is insulated with gray PVC, rated for up to 300V, and withstands temperatures from -20°C to +105°C. Zippable for branching, compliant with various regional flammability standards, and available in multiple lengths, this cable provides excellent electrical performance and chemical resistance, suitable for complex wiring systems requiring durability and flexibility.
3M 362526 Flexible Flat Cable Specifications:
- Insulation Material: Polyvinyl Chloride (PVC)
- Insulation Color: Gray
- Voltage Rating: 300V
- Conductor Specification: 28 AWG stranded tinned copper
- Temperature Range: -20°C to +105°C
- Flammability Ratings: VW-1 (USA), FT1 (Canada)
- Conductors: 7 x 36 AWG strands (7 x 0.127 mm)
- Physical Dimensions (various sizes listed)
- Impedance: Unbalanced 89Ω, Balanced 146Ω
- Capacitance: 54.5 pF/m, 32.2 pF/ft
- Inductance: 0.43 uH/m, 0.68 uH/ft
- Propagation Delay: 4.86 ns/m, 4.69 ns/m
- Velocity of Propagation: 69%
Buy the 3M 3625 U–2013 Reliable Flat Cable for Industrial Applications
Discover the reliable 3M Flat Cable designed for industrial and electronic applications. Featuring 28 AWG stranded tinned copper conductors on 1 mm spacing, it is rated for 300V, with a temperature tolerance from -20°C to +105°C. Its PVC insulation offers chemical resistance and flammability compliance (VW-1, FT1). This cable is perfect for mass termination, branch wiring, and discrete connections, ensuring excellent electrical performance, durability, and flexibility for complex projects requiring secure, long-lasting connections.
Order your 3M Series3625 versatile flat cable today and enhance your wiring systems with durable, flexible, and high-quality interconnect solutions.
