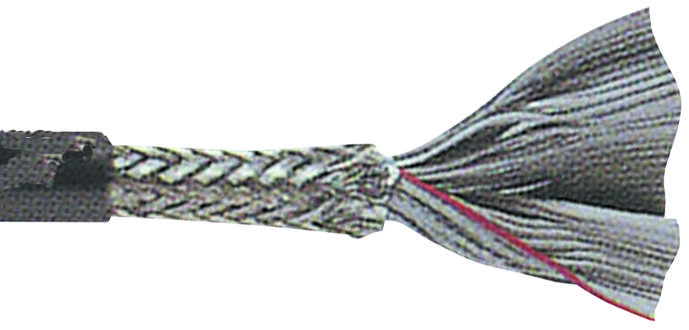

3M 365950 Shielded Flat Cable
The 3659/50 is a 100-foot, 50-conductor gray shielded flat ribbon cable featuring 28 AWG tinned copper conductors on 0.050-inch centers. Designed for easy termination with IDC connectors, its rollable and zippable construction allows for flexible routing and branching. Dual shielding provides an average shielding effectiveness of 35 dB, ensuring good noise immunity. The cable complies with the National Electrical Code (Article 725, CL2 rating) and features VW-1 flame retardant rating. Suitable for industrial applications.
3M 365950 Shielded Flat Cable Specifications:
- Jacket Material: Polyvinyl Chloride (PVC)
- Color: Gray
- Conductors: 28 AWG, 7 x 36 AWG tinned stranded copper
- Shielding: Aluminum/polyester film foil and 90% coverage tinned copper braid
- Voltage Rating: 300V (USA, Canada), <50V (EU)
- Insulation Resistance: > 1 x 10^10 ohms per 10 ft
- Flammability Rating: VW-1 (USA), FT1 (Canada)
- Temperature Rating: -20°C to +105°C (USA), -20°C to +80°C (Canada)
- Impedance: 62Ω unbalanced, 106Ω balanced
- Capacitance: 27.7 pF/ft (90.88 pF/m), 15.2 pF/ft (49.9 pF/m)
- Propagation Delay: 1.72 ns/ft (5.64 ns/m)
- Velocity of Propagation: 59%
- Shielding Effectiveness: Average 35 dB
Buy the Buy 3M Shielded Flat Cable Part Number 365950 Online
Purchase the 3M shielded flat cable 365950 online for efficient, noise-resistant wiring in industrial environments. This 50-conductor cable features 28 AWG tinned copper conductors on 0.050-inch centers, offering flexible routing with rollable and zippable construction. Its dual shielding provides 35 dB average effectiveness, ensuring minimal EMI interference. The cable complies with NEC Article 725 and UL VW-1 flame rating, making it ideal for secure, durable connections in complex electronic systems. Order now for quick delivery and reliable performance.
Get 3M shielded flat cable 365950 today—designed for reliable industrial wiring with high noise immunity and easy IDC termination.
Frequently Asked Questions
Where can I buy 3M 365950?
You can click on the BUY or RFQ button to purchase 365950 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 365950?
You can download the 365950 datasheet or visit the 3M website for support.
Who is the manufacturer of 365950?
3M
