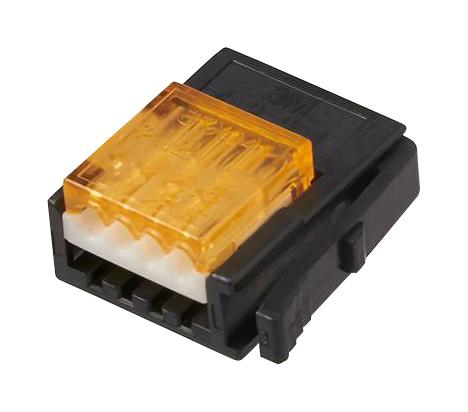

3M 371043163000FL100 Mini Clamp Connector
The 3M™ Mini-Clamp Plug is designed for reliable IDC wire termination in Asian and Japanese wiring applications, accommodating 20-26 AWG stranded wires with features such as integrated cable retention, debris-free termination, and a compact design that saves space on the circuit board. Made from UL 94V-0 rated thermoplastic, it ensures safety, durability, and high mechanical stability with high cycle durability, ideal for demanding electronic interconnections where quick, secure, and maintenance-friendly connections are essential. Suitable for industrial and electronic manufacturing environments requiring robust connectors.
3M 371043163000FL100 Mini Clamp Connector Specifications:
- Material: Glass reinforced thermoplastic
- Flammability: UL 94V-0
- Color: Black body, white/colored cover
- Contact Material: Copper Alloy
- Plating: Nickel, gold with lubricant
- Wiping Area: Nickel underplated
- Electrical Current Rating: 3.0 Amps
- Voltage Rating: 32 Volts
- Insulation Resistance: >1x10^9Ω at 600V
- Withstanding Voltage: 1,000 V at sea level
- Temperature Rating: -20°C to +85°C maximum (1A), -20°C to +75°C (2A), -20°C to +60°C (3A)
- Wire Range: 20-26 AWG
- Wire OD: 0.031
- 0.079
- 2
- 0.039
- 0.047
- 0.063
- 0.079
- 2
- Dimensions: 6-position length approx. 12.4 mm, 8-position approx. 15.2 mm, with wire positions accommodating 20-26 AWG wires
Buy the Buy 3M Mini-Clamp Part Number 371043163000FL100 Online
Purchase the 3M Mini-Clamp Connector online today for reliable, quick IDC wiring with debris-free termination. Its compact design saves space and ensures high electrical and mechanical durability. Compatible with 20-26 AWG stranded wires from Japan and Asia, it features integrated cable retention and is suitable for demanding electronic and industrial applications. Easy to install using standard pliers or crimping tools, this high-quality connector provides long-lasting, maintenance-friendly connections tailored for efficient electronic assembly and manufacturing environments.
Get 3M Mini-Clamp 371043163000FL100 today—designed for quick, reliable IDC connections with debris-free termination and space-saving design.
Frequently Asked Questions
Where can I buy 3M 371043163000FL100?
You can click on the BUY or RFQ button to purchase 371043163000FL100 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 371043163000FL100?
You can download the 371043163000FL100 datasheet or visit the 3M website for support.
Who is the manufacturer of 371043163000FL100?
3M
