3M 375016A Shielded Cable

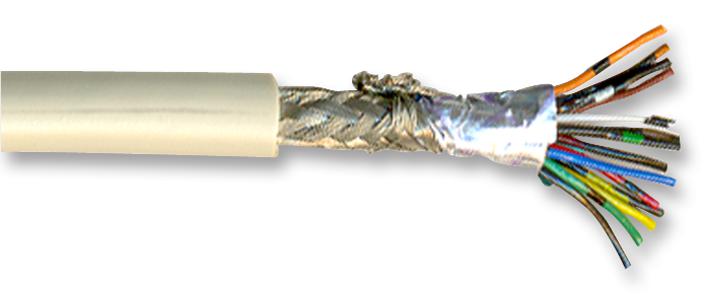

The 3M™ Round, Shielded/Jacketed, Disc. Wire Cable 375016A is a high-quality electrical cable featuring 26 AWG stranded, twisted pair conductors with PVC insulation and jacket. Designed for external wiring with compliance to NEC Article 725, it provides effective shielding of 35 dB to minimize crosstalk and electromagnetic interference, making it ideal for balanced drive applications. Its durable PVC construction in gray color withstands environmental and flammability standards, ensuring reliable performance in power and data transmission across various industrial and commercial setups.
3M 375016A Shielded Cable Specifications:
- Jacket Material: Polyvinyl Chloride (PVC)
- Color: Gray
- Conductors: 26 AWG, 7 x 34 Tinned Stranded Copper
- Shielding: Aluminum/Polyester Film Foil, 90% Coverage Tinned Copper Braid
- Voltage Rating: 150V (UL/CSA), <50V (EU) compliant
- Insulation Resistance: > 1 x 10^9 ohms/10 ft
- Characteristic Impedance: 56% unbalanced, 100 ohms balanced
- Capacitance: 35.6 pF/ft unbalanced, 18.1 pF/ft balanced
- Inductance: 0.09 μH/ft (unbalanced), 0.59 μH/ft (balanced)
- Temperature Rating: USA: Max 75°C, Canada: Max 80°C
- Flammability Standards: UL (E118773), NEC CL2
- Physical Length Options: 100 ft, 1000 ft rolls available
- Awards for quality and compliance with environmental standards
Buy the 3M Series 3750 Shielded Disc. Wire Cable: 375016A
Order the 3M Shielded Cable 375016A online to enjoy premium quality and reliable performance for your electrical wiring needs. Designed with 26 AWG stranded conductors, it features effective shielding to minimize interference, making it suitable for sensitive data and power applications. Its PVC jacket provides durability and resistance to environmental factors, complying with industry standards including NEC and flammability certifications. Perfect for commercial, industrial, and control system wiring, this cable ensures long-lasting performance with easy installation and high reliability for diverse applications.
Get 3M 375016A today—built for reliable power and data transmission with superior shielding and durability.
