3M 380114 Round Conductor Flat Cable
The 3M Round Conductor Flat Cable features 26 AWG stranded copper conductors with PVC insulation, suitable for high-power applications and mass termination. Available in gray and black, this flexible cable has a voltage rating of 300V, temperature range from -20°C to +105°C, and complies with UL and RoHS standards. Its .050-inch centers enable easy connection to IDC connectors, and the zippable design supports branching and discrete termination. Provides reliable electrical performance in industrial automation, instrumentation, and control systems with excellent insulation resistance and environmental stability.
3M 380114 Round Conductor Flat Cable Specifications:
- Conductors: 26 AWG, 7 x 34 (7 x 0.160) Tinned Stranded Copper
- Insulation Material: Polyvinyl Chloride (PVC)
- Color: Gray Standard, Black (See ordering info)
- Voltage Rating: 300V
- Temperature Range: -20°C to +105°C
- Insulation Resistance: > 1 x 10^9 /10 ft.
- Flammability Ratings: VW-1 (USA), FT1 (Canada)
- Physical Dimensions: Center-to-center spacing .050 inches, diameter varies with conductor count, e.g., 0.450 inches for 9 conductors, up to 3.200 inches for 64 conductors
- Propogation Delay (Unbalanced): 1.44 ns/ft
- Velocity of Propagation: 71%
- Impedance: 89 ohms (Unbalanced)
- Capacitance: 16.2 pF/ft
- Inductance: 0.13 μH/ft

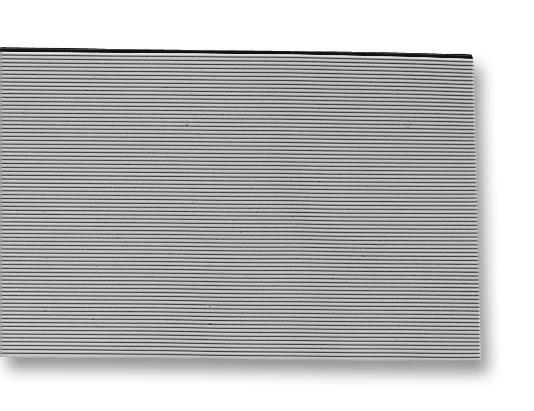

Buy the 3M 3801– Reliable Flat Cable for Industrial Applications
Order the 3M Round Conductor Flat Cable online today for seamless integration into your industrial automation, control, or instrumentation projects. Featuring 26 AWG stranded copper conductors with PVC insulation, the cable offers high power capacity, flexibility, and ease of termination with .050 inch centers. Available in gray and black, it meets UL and RoHS standards, ensuring safety and compliance. With excellent electrical properties, insulation resistance, and environmental stability, it is ideal for reliable industrial connectivity and efficient mass termination to IDC connectors. Purchase now to streamline your wiring solutions.
Buy 3M 3801 round conductor flat cable now and experience reliable high-quality performance in industrial automation and instrumentation systems.
Frequently Asked Questions
Where can I buy 3M 380114?
You can click on the BUY or RFQ button to purchase 380114 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 380114?
You can download the 380114 datasheet or visit the 3M website for support.
Who is the manufacturer of 380114?
3M
