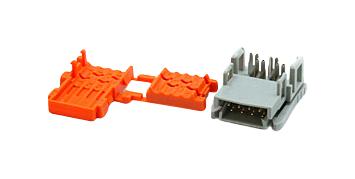

3M 38104E020G00FL Sensor Network Connector
The 3M™ Link Connector, 381 Series featuring IDC termination, offers a quick, reliable, and field-installable wiring solution. It is suitable for wiring applications involving 3 to 4 wires ranging from 22 to 16 AWG and handling a maximum of 16V and 6.0A. Common uses include branching and splicing into existing network cables. This single-action IDC termination connector facilitates T-branching and splicing of sensor and field networks. It provides easy, labor-saving, and dependable IDC termination without the need for wire stripping, tinning, or special tools. Compatible with conductor sizes 18 to 22 AWG, it can be terminated using standard pliers. The semi-transparent, color-coded covers allow for wire inspection and secure wire retention. The hermaphroditic four-point contact design ensures reliable mating, and the T-tap feature enables mid-cable connections without additional wire preparation. Each contact can carry up to 5 Amps, and its latching mechanism ensures stable connections even in demanding field conditions.
3M 38104E020G00FL Sensor Network Connector Specifications:
- Wire Range: 22 to 16 AWG
- Voltage Rating: 16V
- Current Rating: 6.0A
- Contact Material: Copper alloy with tin plating
- Termination Method: IDC, single-action
- Number of Positions: 3 to 4
- Wire Insertion: Insert with insulation, terminate using pliers
- Cover: Semi-transparent, color-coded for inspection
- Design: Hermaphroditic four-point contact
- Application: Branching and splicing for sensor and field wiring
- Max Voltage: 16V
- Max Current per contact: 5A
- Compatible with Wires: 18-22 AWG
Buy the 3M Series 381 Sensor Network: 38104E020G00FL
Experience quick and reliable sensor wiring with the 3M Series 381 Link Connector, featuring IDC termination for easy, tool-free installation. Perfect for branching and splicing in industrial networks, it supports 3-4 wires from 22 to 16 AWG and handles up to 16V and 6A. Its secure, color-coded semi-transparent covers allow for inspection, while the hermaphroditic contact design ensures dependable connections. Compact and resilient, it is ideal for demanding environments, providing a robust solution for efficient cable management and maintenance in sensor and network applications.
Get 3M Series 381 Sensor Network Connector today—built for precision and long-lasting durability in industrial sensor wiring.
