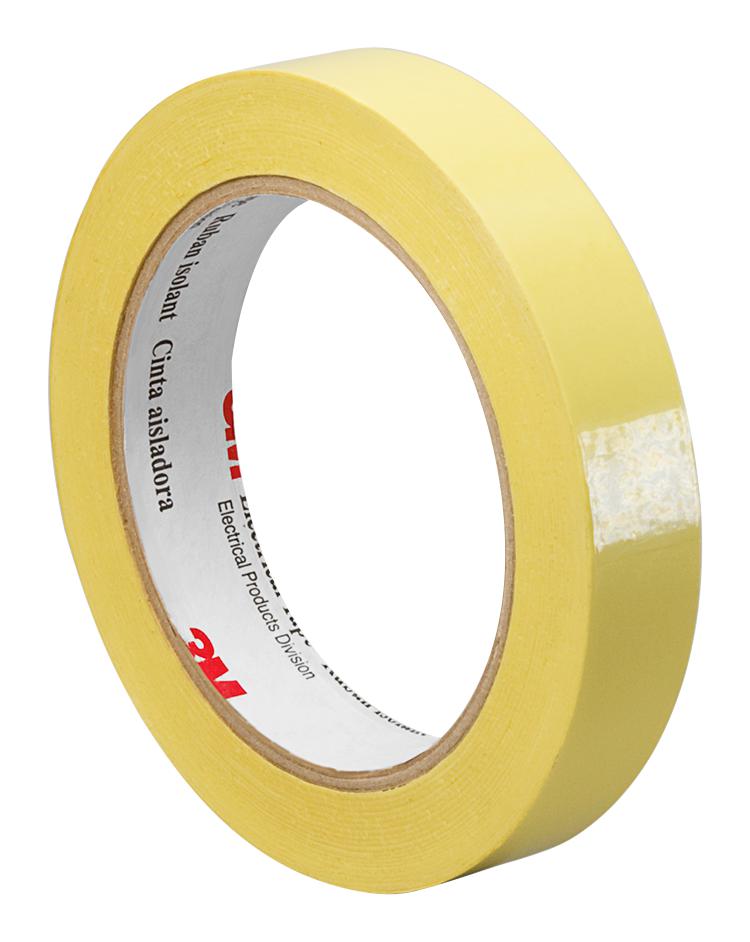

3M 3M56075X72YD High-Temperature Insulation Tape
3M Tape 56 is a high-quality polyester film tape featuring a 1-mil thickness and a thermosetting rubber adhesive, designed for reliable insulation and coil wrapping in electrical applications up to 130°C. The yellow tape provides excellent dielectric properties with a breakdown voltage of 5500 volts, and an insulation resistance exceeding 1×10⁹ megohms. It offers a breaking strength of 25 Ibs./in. and elongation at break of 100%. Available on 3-inch cores, it can be customized in width and length to meet specific insulation needs, ensuring durability in demanding industrial environments.
3M 3M56075X72YD High-Temperature Insulation Tape Specifications:
- Backing Material: Polyester Film
- Backing Thickness: 1.0 Mil
- Total Thickness: 2.3 mils / 0.058 mm
- Adhesive Type: Thermosetting Rubber
- Color: Yellow
- Temperature Class: 130°C / 266°F
- Dielectric Breakdown: 5500 Volts
- Insulation Resistance: >1×10⁹ megohms
- Breaking Strength: 25 Ibs./in. (44 N/10mm)
- Elongation: 100% at break
- Adhesion to Steel: 50 oz./in. (5.5 N/10mm)
- Standard Length: 72 yards
- Core Diameter: 3 inches
- Available in widths from 1/4 inch to 15.5 inches
- Applications include layer insulation and coil cover in high-temperature electrical environments
Buy the 3M 560 Tape – Reliable Insulation for Industrial Applications
Purchase the trusted 3M 560 Tape online today to enhance your electrical insulation and coil wrapping applications. This polyester film tape with thermosetting rubber adhesive offers reliable dielectric strength, excellent breakdown voltage, and superior durability up to 130°C. Its yellow color ensures high visibility, making inspection easier. Available in custom widths and lengths, this versatile tape is ideal for layered insulation and coil covers in industrial settings. Order now and ensure your projects meet the highest safety and performance standards with genuine 3M quality.
Order your 3M Series 560 Tape today and give your electrical projects the dependable insulation they require for longevity and safety.
Frequently Asked Questions
Where can I buy 3M 3M56075X72YD?
You can click on the BUY or RFQ button to purchase 3M56075X72YD from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 3M56075X72YD?
You can download the 3M56075X72YD datasheet or visit the 3M website for support.
Who is the manufacturer of 3M56075X72YD?
3M
