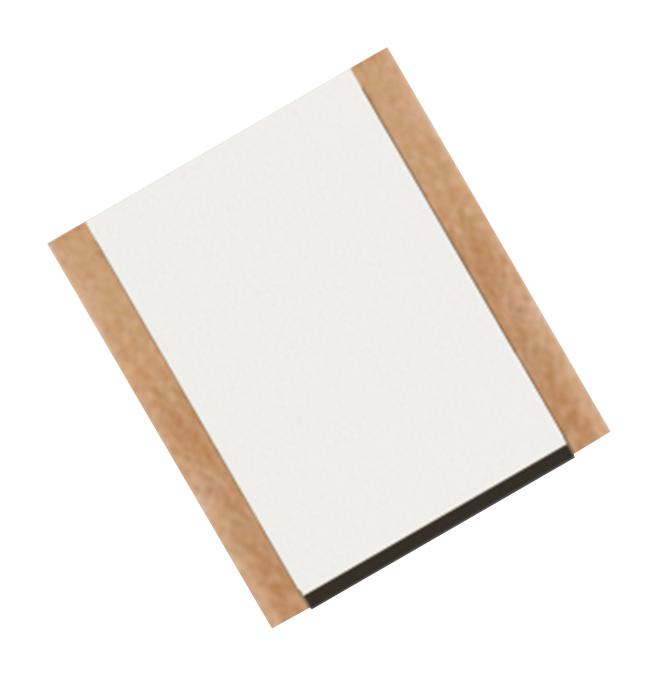

3M 4466W1S256 Double Coated Polyethylene Foam Tape
3M™ Double Coated Polyethylene Foam Tapes 4466W combine a conformable closed-cell foam with a rubber adhesive, offering high initial adhesion to surfaces like polyethylene and polypropylene. These tapes are ideal for joining, mounting, gasketing, and sealing applications involving irregular surfaces. They are suitable for indoor general purpose mounting and joining applications, providing moderate temperature and shear performance. For demanding applications, consider the 4492 and 4496 series which comply with AAMA 810.1-92 standards.
3M 4466W1S256 Double Coated Polyethylene Foam Tape Specifications:
- Adhesive Type: 745 (Rubber Adhesive)
- Adhesive Carrier: Closed Cell Crosslinked Polyethylene Foam
- Thickness (Nominal): 1/32 in. (0.8 mm)
- Thickness (Tolerance): 0.025-0.045 in. (0.6-1.0 mm)
- Foam Color: White
- Release Liner: 0.003 in. White Paper (0.08 mm)
- Approximate Density: 6 lb./ft.3 (95 kg/m3)
- Peel Adhesion (To Stainless Steel, RT, 90° Peel, 12 in./min): 8 lb./in. width (140 N/100 mm)
- Static Shear (1/2 in.2, 72°F, overlap): 1000 g
- Normal Tensile (T-Block, 1 in.2, Jaw Speed 2 in./min): 60 lb./in.2 (415 kPa)
- Dynamic Shear (1 in.2, overlap, Jaw Speed 0.5 in./min): 55 lb./in.2 (380 kPa)
- Temperature Resistance (Short Term): 158°F (70°C)
- Temperature Resistance (Long Term): 120°F (49°C)
- U.V. Resistance: No apparent degradation when exposed for seven days
- Solvent Resistance: No apparent degradation when exposed to splash testing of typical hydrocarbon solvents
- Cold Flex at -20°F: No cracking when flexed around a 1/4 in. mandrel
- Shelf Life: 18-24 months
- Available Sizes (Standard Roll Length): 72 yds. (65.8 m)
- Available Sizes (Maximum Roll Length): 175 yds. (160.0 m)
- Roll Width: 1/8 in. - 48 in. (3.2 mm - 1219 mm)
