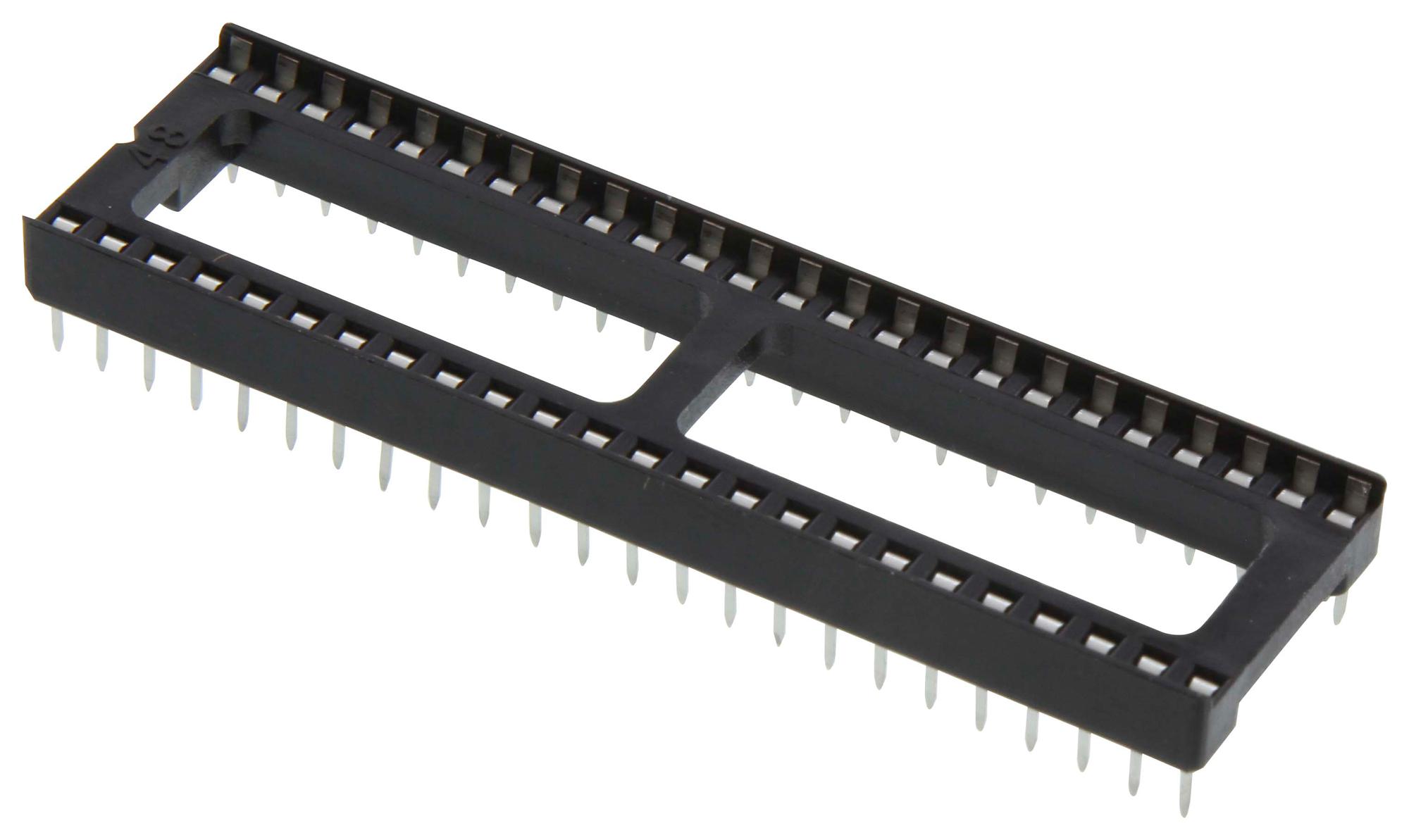

3M 48486000CP DIP Socket
The 3M™ DIP Socket from the 4800 Series is a stamped and formed dual-wipe connector designed for reliable electronic terminations. It features dual leaf, high compression contacts compatible with automatic insertion equipment, and is stackable from side and end. Constructed with polyester glass-filled insulation, phosphor bronze contacts, and matte tin plating, it supports current ratings up to 1A. The socket withstands temperatures from -25°C to +85°C, conforms to RoHS standards, and is suitable for lead-free wave soldering only. It offers precise dimensions and secure locking features for robust electronic connections.
3M 48486000CP DIP Socket Specifications:
- Insulation Material: Polyester Glass Filled
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Phosphor Bronze
- Surface Plating: Matte Tin over Nickel, 3.43 um minimum
- Insertion/Withdrawal Force: 340 grams max / 80 grams min per contact
- Acceptable Pin Diameter: 0.25 mm - 0.27 mm
- Pin Length: 2.54 mm - 3.30 mm
- Mounting Hole Diameter: 0.90 mm - 1.10 mm
- Current Rating: 1A
- Insulation Resistance: 5,000 MΩ at 500 V
- Withstanding Voltage: 100 V for 1 minute
- Temperature Range: -25°C to +85°C
- Process Compatibility: Lead-free wave solder only, max reflow temperature 260°C
- Physical Dimensions vary by configuration: e.g., 8 pins - 10.03 mm length, 7.62 mm width, 10.16 mm height, etc.
