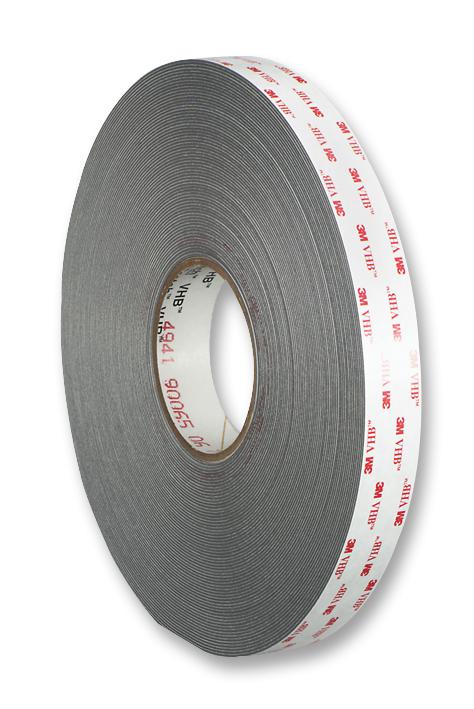

3M 494119MM VHB Acrylic Foam Tape
3M™ VHB™ Tape 4941 is a 0.045 inch thick gray double-coated acrylic foam tape with a paper liner. It features multi-purpose acrylic adhesive on both sides, bonding effectively to a wide range of high and medium surface energy substrates. The conformable foam provides excellent contact between substrates, even when they have slight mismatches. This tape is ideal for replacing mechanical fasteners like rivets, screws, or liquid adhesives, creating a permanent seal against water and moisture. It's suitable for various industrial applications where strong, durable, and permanent bonding is required.
3M 494119MM VHB Acrylic Foam Tape Specifications:
- Color: Gray
- Tape Thickness: 1.1 mm (0.045 in)
- Thickness Tolerance: ±10 %
- Adhesive Type: Multi-Purpose Acrylic
- Foam Type: Conformable Acrylic Foam
- Density: 720 kg/m³ (45 lb/ft³)
- Liner: DK Paper
- Liner Thickness: 0.08 mm (0.003 in)
- Liner Color: White (printed)
- 90° Peel Adhesion: 22 lb/in (39 N/cm)
- Normal Tensile: 590 kPa (85 lb/in²)
- Overlap Shear Strength: 480 kPa (70 lb/in²)
- Short Term Temperature Resistance: 149 °C (300 °F)
- Long Term Temperature Tolerance: 93 °C (200 °F)
- Water Vapor Transmission: 25.6 g/m²/24 hr
- Shear Modulus: 3 × 10^5 Pa
- Poisson's Ratio: 0.35
- Coefficient of Thermal Expansion: 180 × 10^-6 m/m/°C
- Dielectric Constant: 2.29 (at 1 KHz)
- Dissipation Factor: 0.0245 (at 1 KHz)
- Dielectric Strength: 14 V/μm
- Thermal Conductivity: 0.08 W/m/K
- Volume Resistivity: 2.1 × 10^14 Ω-cm
- Surface Resistivity: 2.7 × 10^14 Ω/sq
- Standard Roll Length: 32.9 m (36 yd)
- Minimum Available Width: 6.4 mm (0.25 in)
- Maximum Available Width: 1219 mm (48 in)
- Normal Slitting Tolerance: ±0.79 mm (±1/32 in)
