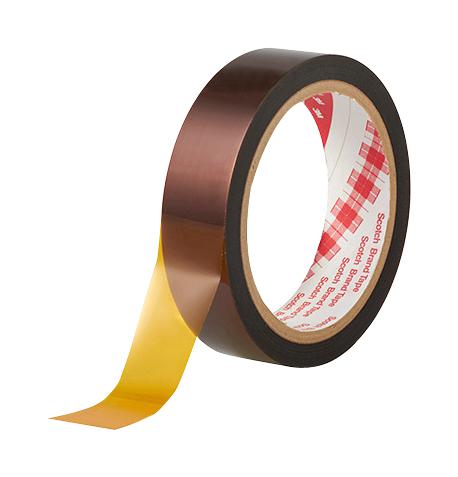

3M 541325MM Polyimide Tape
3M™ Polyimide Film Tape 5413, featuring DuPont™ Kapton® polyimide film and silicone adhesive, is engineered for PCB solder masking and high-temperature applications. The amber-colored tape, 2.7 mil thick, offers excellent dimensional stability at elevated temperatures, flame retardancy, chemical and radiation resistance. It ensures reliable protection of gold fingers during wave soldering and acts as a release surface in fabrication processes. With a backing thickness of 1.0 mil and total thickness of 2.7 mil, it withstands temperature ranges from -73°C to 260°C, providing high dielectric strength and durability for demanding electronics manufacturing tasks.
3M 541325MM Polyimide Tape Specifications:
- Backing: DuPont™ Kapton® Polyimide Film
- Adhesive: Silicone
- Color: Amber
- Standard Roll Length: 33 m (36yd)
- Adhesion to Steel: 22 02z/in width (24 N/100 mm)
- Tensile Strength at Break: 33 Ib/in width (678 N/100 mm)
- Elongation at Break: 62%
- Backing Thickness: 1.0 mil (0.03 mm)
- Total Tape Thickness: 2.7 mil (0.07 mm)
- Temperature Range: -73°C to 260°C (-100°F to 500°F)
- Dielectric Strength: 7000 volts
- Outgassing: > %TLM = 1.50, %CVCM = 0.50
- Flame Retardant: Pass UL-510
- Shelf Life: 36 months when stored in original cartons at 21°C and 50% RH
Buy the 3M Series 5413 Polyimide Tape: PCB High-Temperature Masking Tape
Enhance your solder masking and high-temperature fabrication processes with 3M Series 5413 Polyimide Tape. Crafted from DuPont™ Kapton® film and silicone adhesive, this amber-colored tape offers exceptional stability from -73°C up to 260°C, flame retardancy, chemical resistance, and reliable dielectric strength. Its 2.7 mil thickness ensures durability during high-temperature manufacturing, reducing rework and surface damage. Perfect for PCB gold finger protection, component masking, and part release, this tape delivers consistent performance, helping you achieve high productivity and quality in electronics assembly.
Buy 3M Series 5413 Polyimide Tape now and experience unmatched reliability and performance in high-temperature PCB masking and fabrication.
Frequently Asked Questions
Where can I buy 3M 541325MM?
You can click on the BUY or RFQ button to purchase 541325MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 541325MM?
You can download the 541325MM datasheet or visit the 3M website for support.
Who is the manufacturer of 541325MM?
3M
