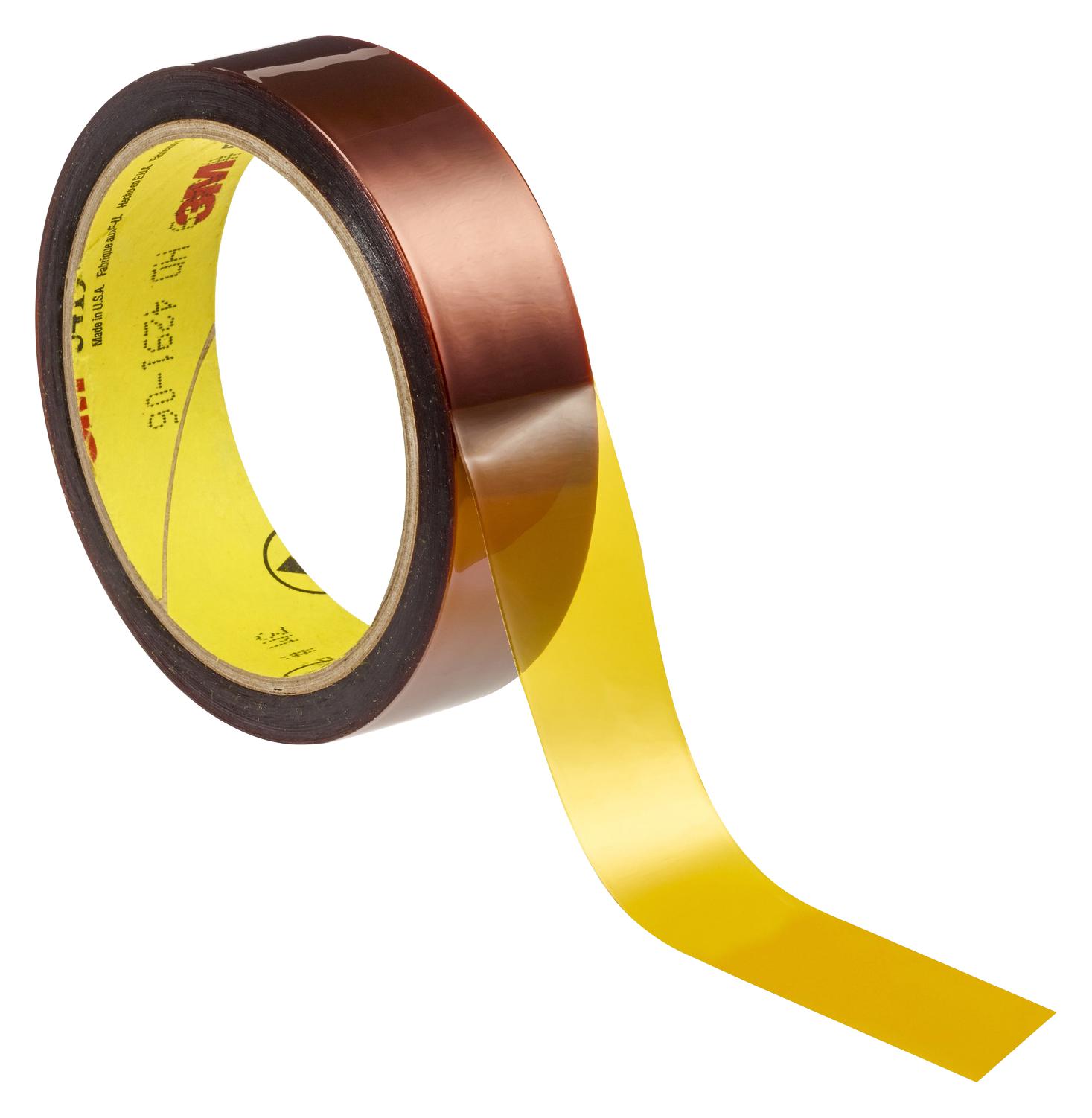

3M 54139MM Polyimide Tape
3M Polyimide Film Tape 5413, featuring DuPont Kapton polyimide film and high-temperature silicone adhesive, is designed for PCB solder masking and high-temperature fabrication. Its amber color and 2.7 mil thickness provide excellent dimensional stability at temperatures up to 260°C, flame retardancy, chemical and radiation resistance, and a high dielectric strength of 7000 volts. The tape’s properties including adhesion to steel, tensile strength of 33 lb/in, and elongation at break of 62% make it suitable for protecting gold fingers during wave soldering and parts cured at elevated temperatures. Typical roll length is 33 meters, stored for up to 36 months under proper conditions.
3M 54139MM Polyimide Tape Specifications:
- Backing Material: DuPont Kapton Polyimide Film
- Adhesive: Silicone
- Color: Amber
- Standard Roll Length: 33 meters
- Adhesion to Steel: 22 oz/in width
- Tensile Strength: 33 lb/in width
- Elongation at Break: 62%
- Backing Thickness: 1.0 mil (0.03 mm)
- Total Thickness: 2.7 mil (0.07 mm)
- Temperature Range: -73°C to 260°C
- Dielectric Strength: 7000 volts
- Outgassing: %TLM 1.50, %CVCM 0.50
- Flame Retardancy: Pass UL-510
- Shelf Life: 36 months at 21°C and 50% RH
Buy the 3M Series Polyimide Film Tape 5413: 54139MM
Order 3M Polyimide Film Tape 5413 online today and enjoy superior heat resistance, flame retardancy, and chemical resistance for your PCB masking and high-temperature fabrication applications. This durable tape features DuPont Kapton polyimide film and high-performance silicone adhesive, ensuring dimensional stability at temperatures up to 260°C. With a typical roll length of 33 meters, it offers excellent tensile strength and elongation. Ideal for wave soldering and curing processes, this tape helps reduce rework and cleaning, making your manufacturing process smoother and more efficient.
Buy 3M Polyimide Film Tape 5413 now and experience unmatched high-temperature performance and reliability for PCB protection and fabrication needs.
