3M 770016100 Flat Ribbon Cable
The 3M 7700/16 100' ribbon cable is a 16-conductor, round, controlled impedance flat cable designed for high-speed digital and communication applications. It features 30 AWG solid tin-plated copper conductors with a flat, flexible design supporting tight bends and folding. Constructed with polyolefin insulation laminated with flexible foil, it maintains a consistent impedance of 95 ohms (±5 ohms) and offers low differential insulation loss below 3 dB/m at 2.5 GHz. It supports data rates up to 14 Gbps with IDC connectors or 20 Gbps as a continuous cable, operating from -20°C to 80°C with a voltage withstand of 750 VAC.
3M 770016100 Flat Ribbon Cable Specifications:
- Conductors: 30 AWG, Solid, Tin Plated Copper
- Insulation: Polyolefin laminated with flexible foil
- Number of conductors: 16
- Impedance: 95 ohms ±5 ohms
- Differential insulation loss: < 3 dB/m at 2.5 GHz
- Voltage rating: 30 VAC, withstand voltage of 750 VAC
- Operating temperature: -20°C to 80°C
- Insulation resistance: > 1×10^9 ohms at 500 VDC
- Length: 100 feet
- Certifications: UL, cUL

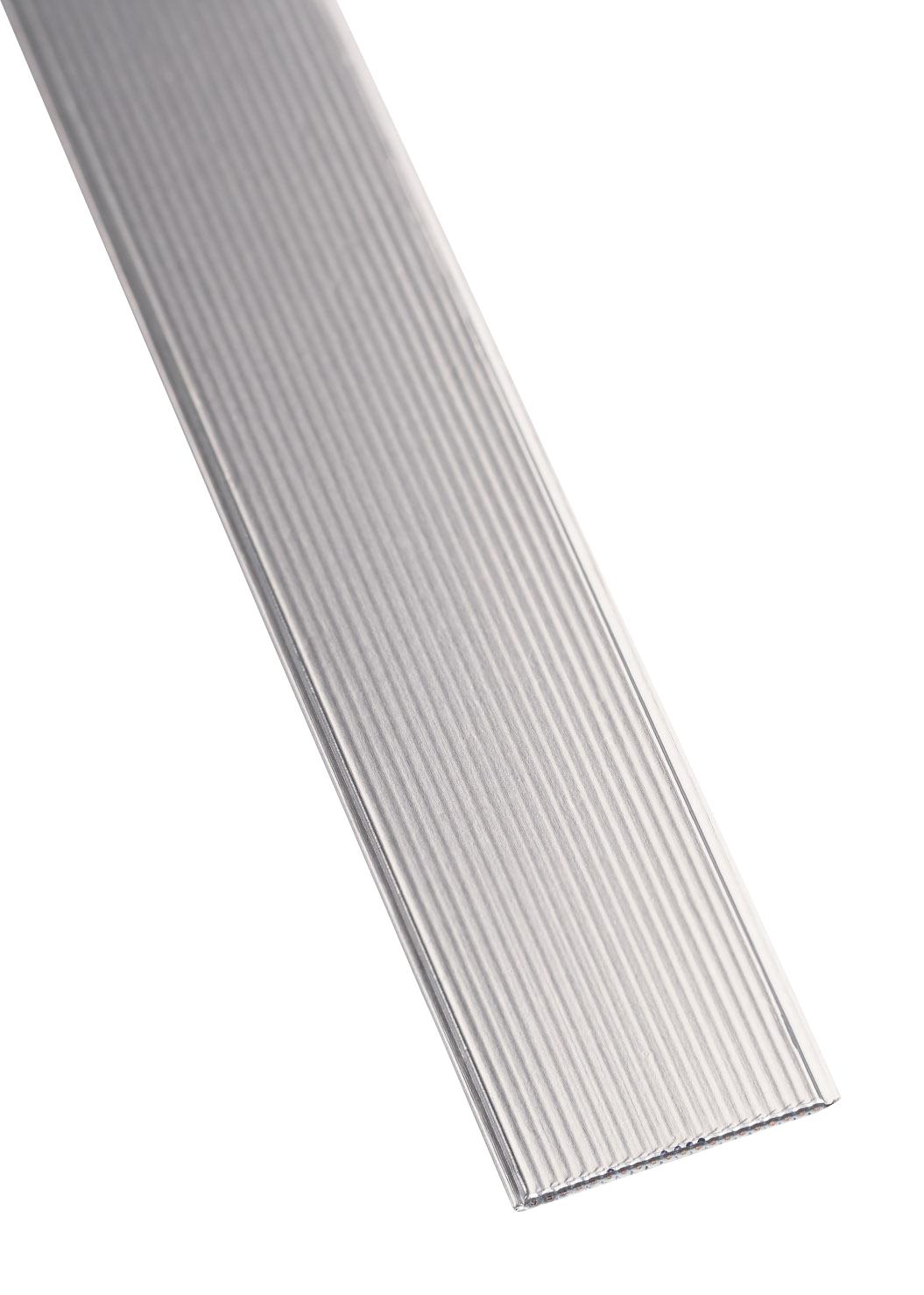

Buy the Buy 3M Ribbon Cable Part Number 770016100 Online
Enhance your digital and communication systems with the high-speed, controlled impedance flat ribbon cable from 3M. Designed with 30 AWG tin-plated copper conductors and a robust polyolefin insulation, this 16-conductor cable maintains consistent impedance of 95 ohms, supporting data rates up to 20 Gbps. Its flexible flat design facilitates tight bends, ideal for wire-to-board, automated testing, and networking. Certified by UL, cUL, it operates efficiently from -20°C to 80°C, with a voltage withstand of 750 VAC, ensuring reliable connection performance in demanding environments.
Buy 3M 770016100 now and experience reliable high-speed digital data transmission and flexible wiring solutions for industrial and communication applications.
Frequently Asked Questions
Where can I buy 3M 770016100?
You can click on the BUY or RFQ button to purchase 770016100 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 770016100?
You can download the 770016100 datasheet or visit the 3M website for support.
Who is the manufacturer of 770016100?
3M
