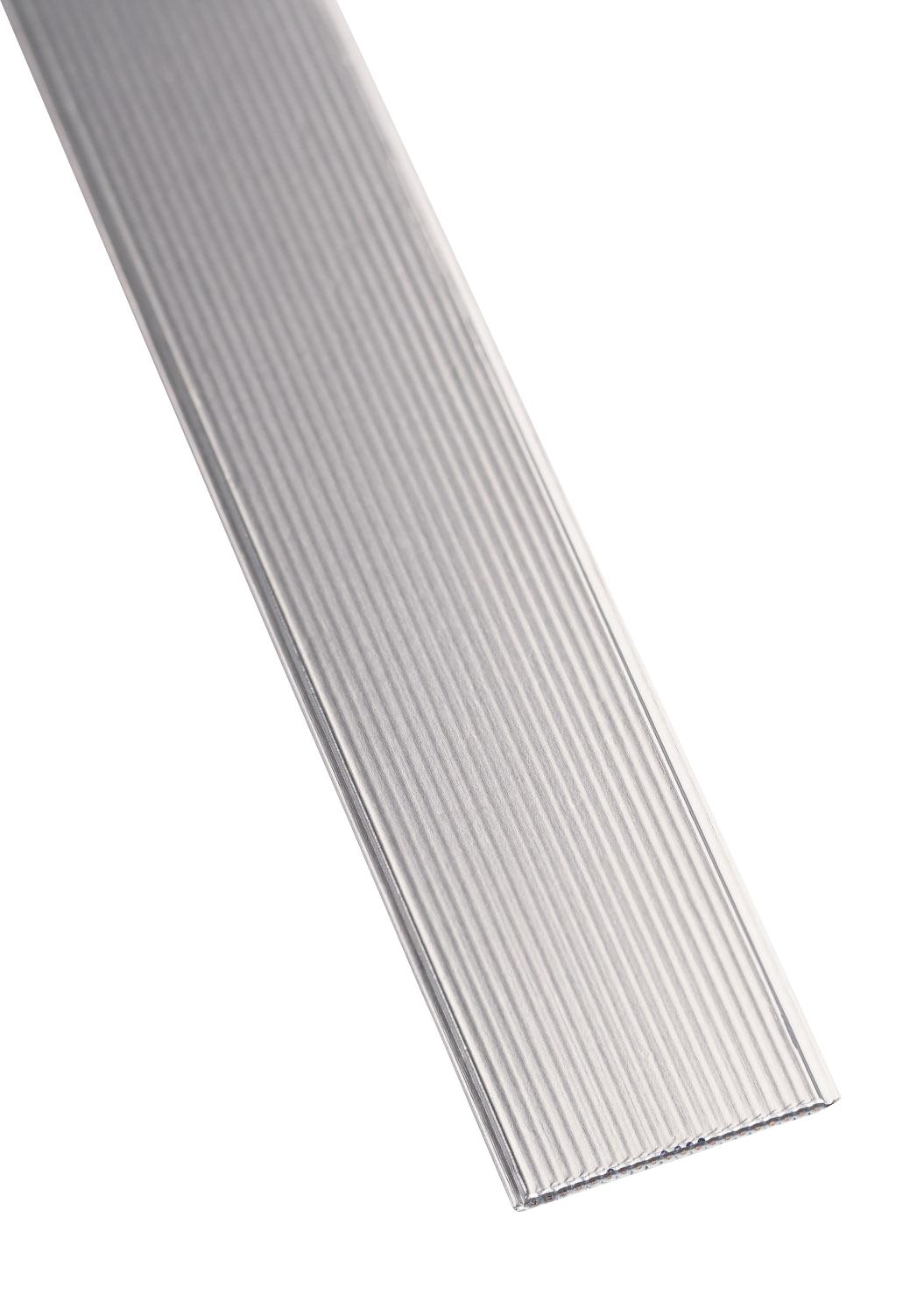

3M 770016100SF Round Conductor Flat Cable
The 3M™ Round Conductor Flat, Controlled Impedance Cable, 7700 Series, offers a unique solution for signal transmission applications. Its controlled impedance design minimizes signal reflections and ensures optimal performance. The cable's construction includes a translucent polyester outer layer over an aluminum foil layer, providing a metallic appearance without conductivity. A thin conductive layer at each edge allows for flexible routing and connection options. Users should evaluate its use in their application and, if necessary, insulating tape may be applied to cover the aluminum layer.
3M 770016100SF Round Conductor Flat Cable Specifications:
- conductors: 30 AWG Solid, Tin Plated Copper
- insulation: Polyolefin
- covering: Aluminum & Polyester
- flame_test_rating: FT2, Horizontal flame
- voltage_rating: 30 V AC
- operating_temperature: 80°C MAX
- storage_temperature: -20°C to +80°C
- dielectric_withstanding_voltage: 750 V DC for 1 minute at sea level
- insulation_resistance: >1000 Megaohms with 500 VDC applied for 1 minute
- differential_impedance: 95 ± 5 Ohms (Rise time of 35ps)
- differential_insertion_loss: < 3 dB typ. (Measured one meter length samples)
- diff_to_common_mode_conversion: < -15 dB (Measured one meter length samples)
- intra_pair_skew: < 15 ps/m (Measured one meter length samples)
- critical_dimension_measurements: See related customer drawing
- peel_force: < 0.0204 ± 0.0075 Lbf/conductor (180° peel direction, no faster than 2” peeled per minute)
