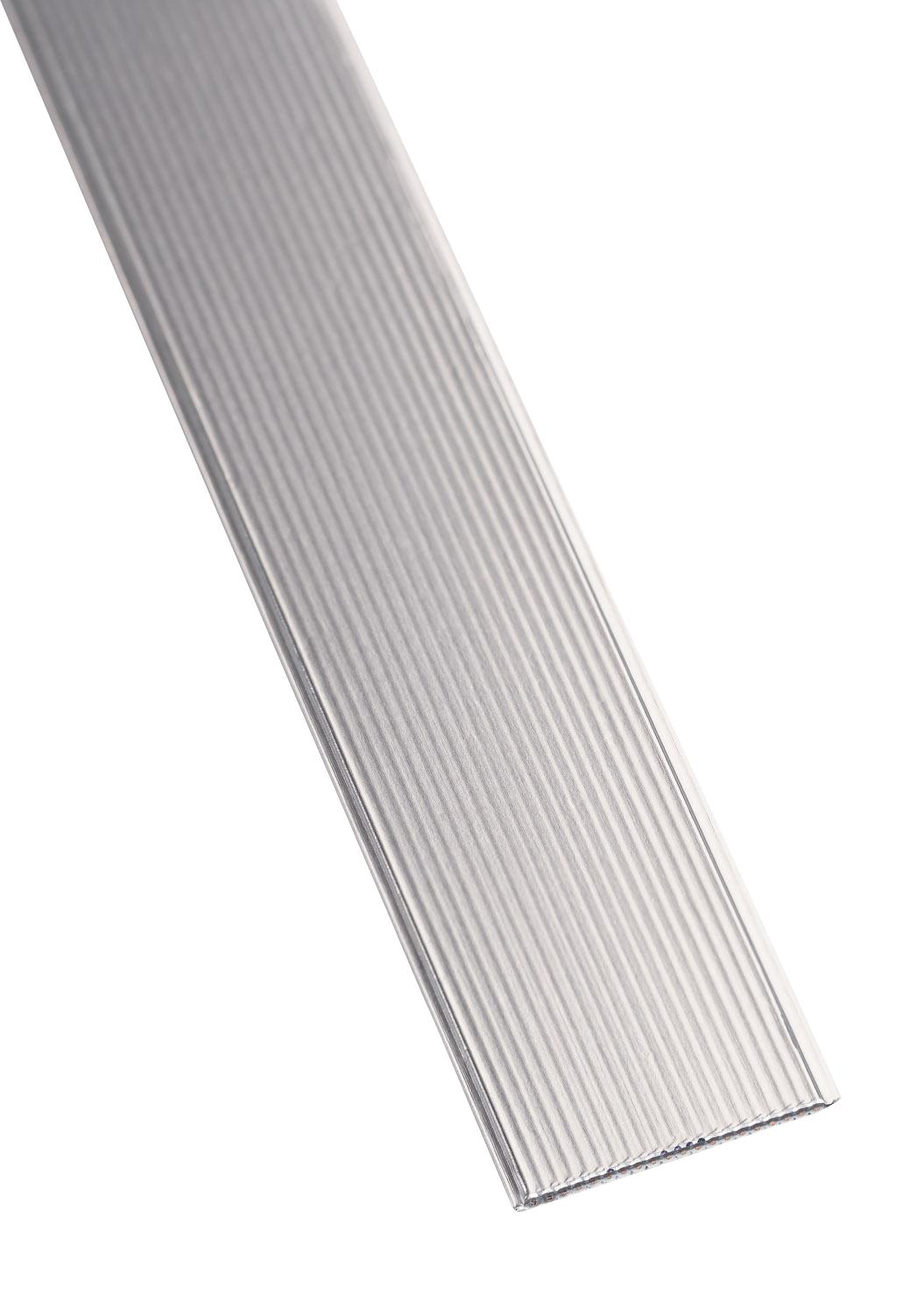

3M 770030100SF Round Conductor Flat Cable
The 3M™ Round Conductor Flat, Controlled Impedance Cable, 7700 Series, offers a unique construction with a metallic appearance but non-conductive surface. It features a thin conductive layer at each edge, encased in a translucent polyester outer layer over an aluminum foil layer. This cable is ideal for applications demanding controlled impedance and signal integrity, such as data transmission and signal routing in electronic devices. Users should evaluate its use in their application and may need to apply insulating tape to cover the aluminum layer as deemed appropriate.
3M 770030100SF Round Conductor Flat Cable Specifications:
- conductors: 30 AWG Solid, Tin Plated Copper
- insulation: Polyolefin
- covering: Aluminum & Polyester
- flame_test_rating: FT2, Horizontal flame
- voltage_rating: 30 V AC
- operating_temperature: 80°C MAX
- storage_temperature: -20°C to +80°C
- dielectric_withstanding_voltage: 750 V DC for 1 minute
- insulation_resistance: >1000 Megaohms with 500 VDC applied for 1 minute
- differential_impedance: 95 ± 5 Ohms
- differential_insertion_loss: < 3 typ. dB
- diff_to_common_mode_conversion: < -15 dB
- intra_pair_skew: < 15 ps/m
- critical_dimension_measurements: See related customer drawing
- peel_force: < 0.0204 ± 0.0075 Lbf/conductor
Buy the 7700/30 100'SF 3M Round Conductor Flat Cable | myMectronic
Purchase the 3M 7700/30 100'SF Round Conductor Flat Cable securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy 3M 770030100SF?
You can click on the BUY or RFQ button to purchase 770030100SF from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 770030100SF?
You can download the 770030100SF datasheet or visit the 3M website for support.
Who is the manufacturer of 770030100SF?
3M
