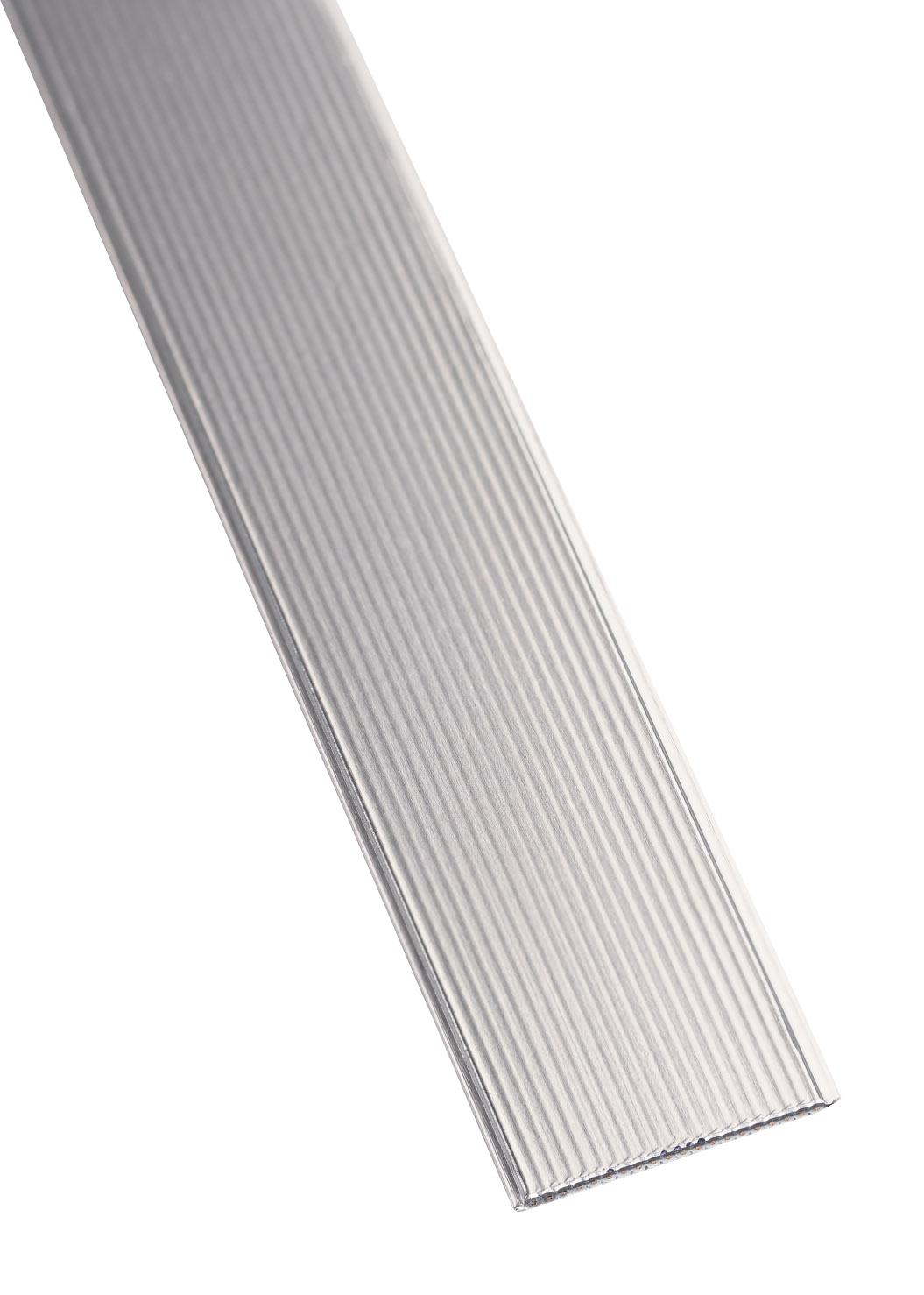

3M 770050100SF Round Conductor Flat Cable
The 3M™ Round Conductor Flat, Controlled Impedance Cable, 7700 Series, offers a robust solution for data transmission and signal integrity applications. Constructed with 30 AWG solid, tin-plated copper conductors, the cable is insulated with polyolefin and features an aluminum and polyester covering, providing a metallic appearance. The controlled impedance design ensures minimal signal distortion, making it suitable for high-frequency applications. It is commonly used in electronics, data communication, and industrial automation where reliable signal transmission is critical. Users should evaluate its use in their application and may need to apply insulating tape to cover the aluminum layer as deemed appropriate.
3M 770050100SF Round Conductor Flat Cable Specifications:
- conductors: 30 AWG Solid, Tin Plated Copper
- insulation: Polyolefin
- covering: Aluminum & Polyester
- flame_test_rating: FT2, Horizontal flame
- voltage_rating: 30 V AC
- operating_temperature: 80°C MAX
- storage_temperature: -20°C to +80°C
- dielectric_withstanding_voltage: 750 V DC for 1 minute
- insulation_resistance: >1000 Megaohms
- differential_impedance: 95 ± 5 Ohms
- differential_insertion_loss: < 3 typ. dB
- diff_to_common_mode_conversion: < -15 dB
- intra_pair_skew: < 15 ps/m
- critical_dimension_measurements: See related customer drawing
- peel_force: < 0.0204 ± 0.0075 Lbf/conductor
