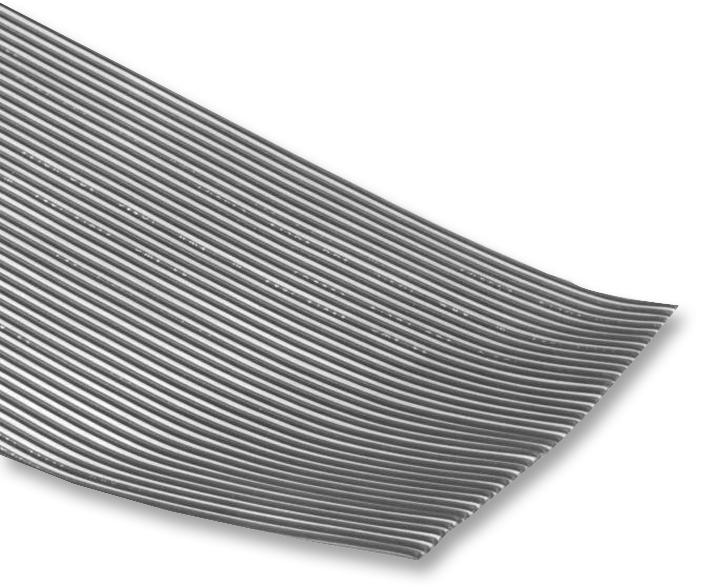

3M 812426 Power Flat Cable
The 3M™ Round Conductor Flat Cable in the 8124 Series features 22 AWG stranded tinned copper conductors, isolated with PVC insulation. Designed for power applications, it provides high current capacity and flexibility, suitable for discrete terminations and branching. The cable is RoHS compliant, with a voltage rating of 300V in the USA and 150V in Canada. Its durable construction ensures reliable electrical performance across a temperature range of -20°C to +105°C, and it meets flammability ratings VW-1 and FT1, making it ideal for industrial power and control systems.
3M 812426 Power Flat Cable Specifications:
- Insulation Material: Polyvinyl Chloride (PVC)
- Conductor Size: 22 AWG 7 x 30 [7 x 0.254] Tinned Stranded Copper
- Voltage Rating: 300V (USA), 150V (Canada)
- Temperature Range: -20°C to +105°C in the US, -20°C to +80°C in Canada
- Flammability Rating: VW-1 (US), FT1 (Canada)
- Insulation Resistance: >1 x 10^9 Ω /10ft [3m]
- Characteristic Impedance: Unbalanced 119 Ω
- Capacitance: 11.0 pF/ft [36.1 pF/m]
- Inductance: 0.15 μH/ft [0.49 μH/m]
- Propagation Delay: 130 ns/ft [4.27 ns/m]
- Velocity of Propagation: 78%
- Physical Length: Typically 100 ft per roll
- Color: Dark Gray conductors on Light Gray carrier
- Compliance: RoHS, UL File No. E42769
Buy the 3M 812426 – Reliable Power Flat Cable for Industrial Applications
Secure your electrical projects with the durable 3M Power Flat Cable series, featuring flexible 22 AWG stranded copper conductors insulated with PVC. Rated at 300V, RoHS compliant, and capable of withstanding temperatures from -20°C to +105°C, this cable is ideal for industrial power systems requiring high current carrying capacity and reliable performance. Its compact flat design allows easy routing and branching, making it a smart choice for control panels, machinery wiring, and automation systems. Order now to ensure efficient, compliant, and durable electrical connections.
Buy 3M 812426 now and experience unmatched reliability and high current capacity for power and control wiring in industrial settings.
Frequently Asked Questions
Where can I buy 3M 812426?
You can click on the BUY or RFQ button to purchase 812426 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 812426?
You can download the 812426 datasheet or visit the 3M website for support.
Who is the manufacturer of 812426?
3M
