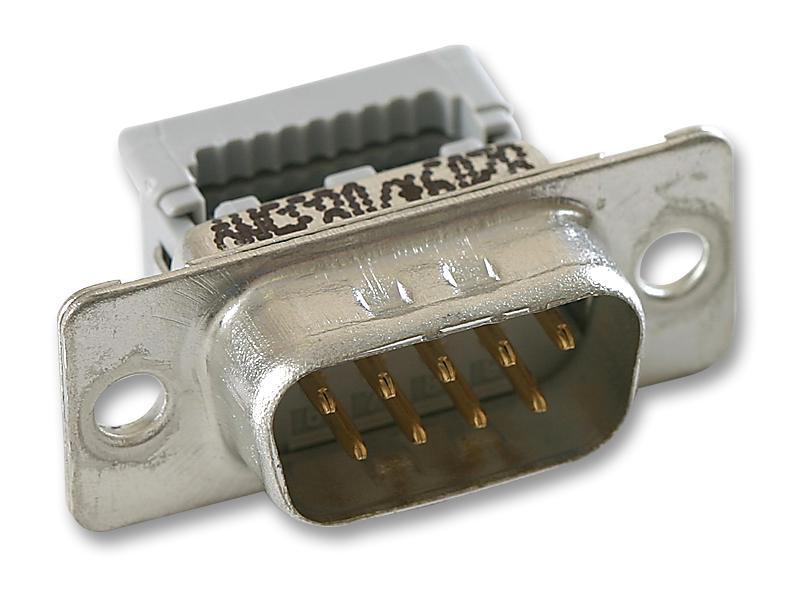

3M 82098009 D Sub Connector
The 3M Series 8200 D Sub Plug offers a reliable and compact connector solution suitable for electronic systems requiring secure connections. Made from durable materials including glass-filled polyester insulative housing, copper alloy contacts with gold plating, and steel shells with tin plating, it provides excellent electrical performance with a current rating of 1A, insulation resistance over 1×10^9 ohms, and withstand voltage up to 1000 V. Its low-profile design supports multiple mounting options, adjustable cover styles, and enhanced EMI/ESD protection features. Designed for versatility, it accommodates 26, 37, 15, and 9 pin configurations, featuring open or closed end covers, and is RoHS compliant, suitable for industrial and electronic applications.
3M 82098009 D Sub Connector Specifications:
- Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Copper Alloy
- Contact Plating: 30 µ
- Current Rating: 1A
- Insulation Resistance: >1×10^9 ohms at 500 V
- Withstanding Voltage: 1000 V AC at sea level
- Temperature Rating: -55°C to +105°C
- Shell Material: Steel
- Strain Relief Material: Stainless Steel
- Wire Accommodation: 26 and 28 AWG Solid or Stranded
- RoHS Compliance: Yes
Buy the 3M Series 8200 D Sub Plug: 82098009
Purchase the 3M Series 8200 D Sub Plug online today to ensure your electronic systems are equipped with a durable, RoHS compliant connector. This versatile connector features open and closed end covers, dimples for EMI/ESD protection, and four mounting options, making it ideal for industrial and electronic applications. Constructed from high-quality materials including glass-filled polyester, copper alloy contacts with gold plating, and steel shells with tin plating, it delivers exceptional electrical performance with a 1A current rating, insulation resistance over 10^9 ohms, and withstand voltage of 1000 V. Enhance your systems with this reliable, low-profile connector that supports diverse configurations and provides robust EMI/ESD shielding.
Buy 3M Series 8200 D Sub Plug now and experience unmatched reliability and performance in electronic connectors with EMI/ESD protection and versatile mounting options.
Frequently Asked Questions
Where can I buy 3M 82098009?
You can click on the BUY or RFQ button to purchase 82098009 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 82098009?
You can download the 82098009 datasheet or visit the 3M website for support.
Who is the manufacturer of 82098009?
3M
