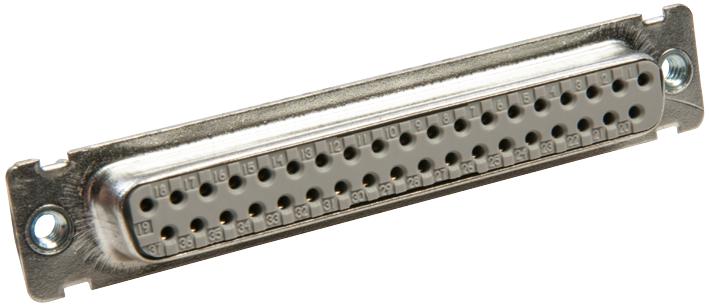

3M 83376003 Socket Connector
This socket connector provides reliable electrical connections in electronic systems, featuring secure mounting options and corrosion-resistant materials. Designed for durability, it supports both front and rear mounting with multiple cover styles, including open and closed options. The connector's copper alloy contacts are gold and nickel plated for optimal conductivity and corrosion resistance. Insulation is made from UL94V-0 rated glass-filled polyester, capable of withstanding temperatures from -55°C to +105°C. It accommodates 26 and 28 AWG solid or stranded wires, rated at 1A with high insulation resistance, ideal for industrial and electronic applications requiring robust interconnect solutions.
3M 83376003 Socket Connector Specifications:
- Insulation Material: Glass Filled Polyester (PBT)
- Flammability: UL94V-0
- Color: Gray
- Contact Material: Copper Alloy
- Plating: 30 u
- Underplating: Tin
- Shell Material: Steel
- Strain Relief Material: Stainless Steel, Tin plated
- Wire Accommodation: 26 and 28 AWG Solid or Stranded
- Current Rating: 1A
- Insulation Resistance: > 1x 10^9 at 500 Vdc
- Withstanding Voltage: 1000 Vac at Sea Level
- Temperature Rating: -55°C to +105°C
Buy the 3M 83376003 – Reliable Interconnect Socket for Industrial Applications
Purchase the 3M Socket Connector 83376003 online today to ensure secure and durable electrical connections for your electronic systems. Featuring corrosion-resistant copper alloy contacts with gold and nickel plating, this connector supports multiple mounting styles and cover configurations for versatile use. Its glass-filled polyester insulation withstands temperatures from -55°C to +105°C, while accommodating 26 and 28 AWG wires rated at 1A. Simplify your assembly process with easy installation and reliable performance—order now to enhance your project’s reliability and efficiency.
Order your 3M Socket Connector 83376003 today and give your electronic projects the dependable, high-quality connection they deserve.
Frequently Asked Questions
Where can I buy 3M 83376003?
You can click on the BUY or RFQ button to purchase 83376003 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 83376003?
You can download the 83376003 datasheet or visit the 3M website for support.
Who is the manufacturer of 83376003?
3M
